Occupant Classification Sensor Connector

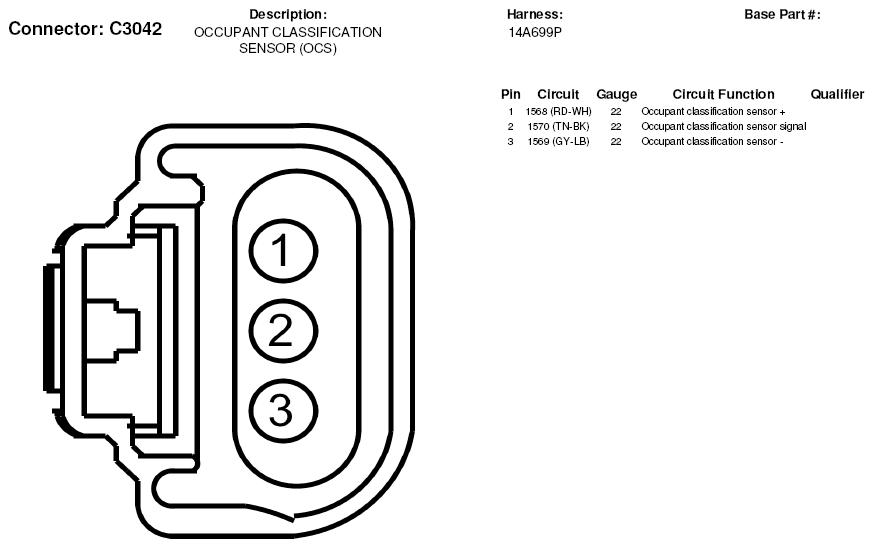

Fig 1: Occupant Classification Sensor Connector End View (C3042)

G05179329

Courtesy of FORD MOTOR CO.
