Inline Connectors

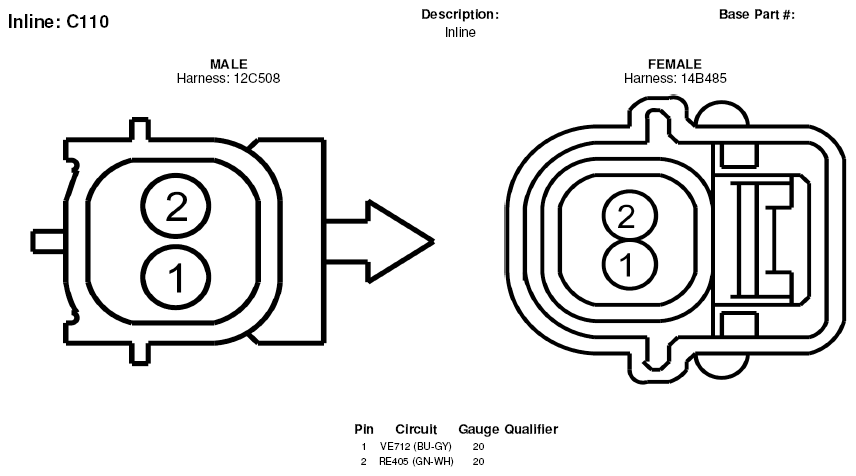

Fig 1: Inline Connector End View (C110)

G05180548

Courtesy of FORD MOTOR CO.

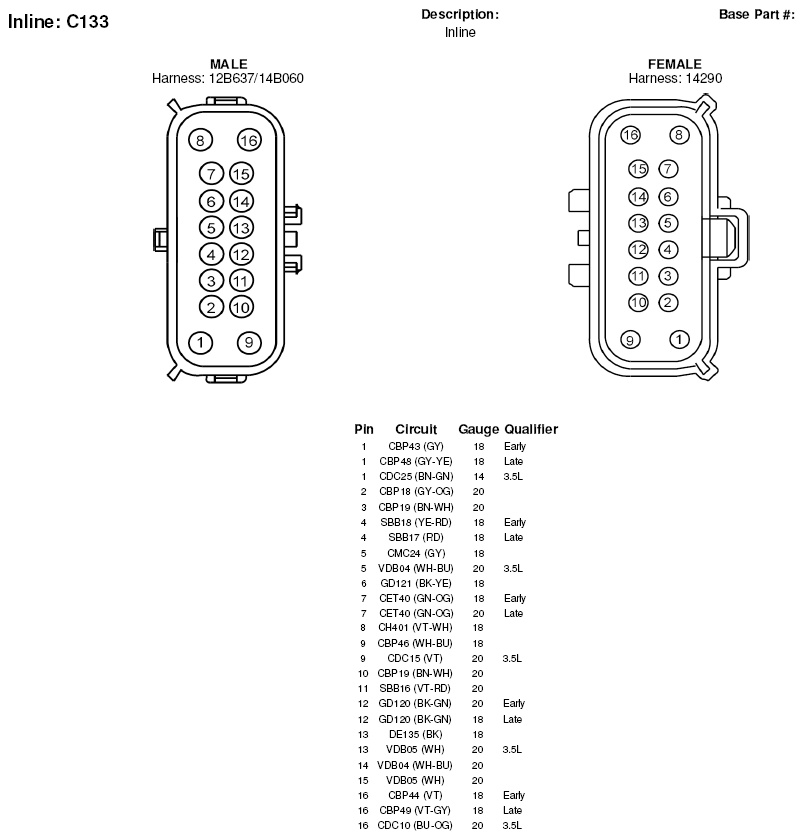

Fig 2: Inline Connector End View (C133)

G05180562

Courtesy of FORD MOTOR CO.

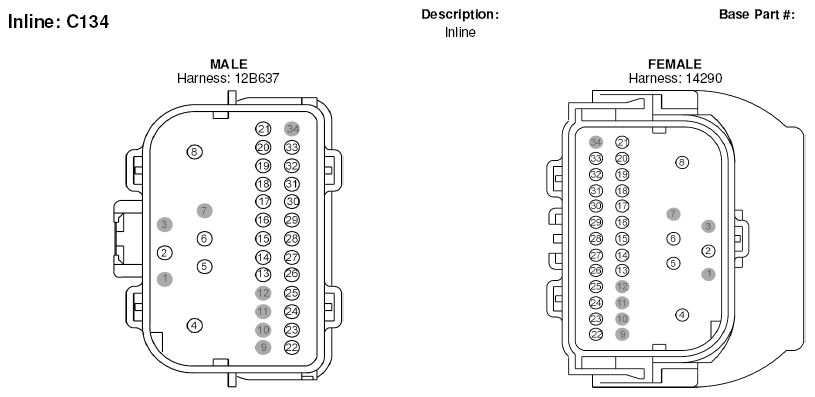

Fig 3: Inline Connector End View (C134) (1 Of 2)

G05180563

Courtesy of FORD MOTOR CO.

Fig 4: Inline Connector End View (C134) (2 Of 2)

G05180564

Courtesy of FORD MOTOR CO.

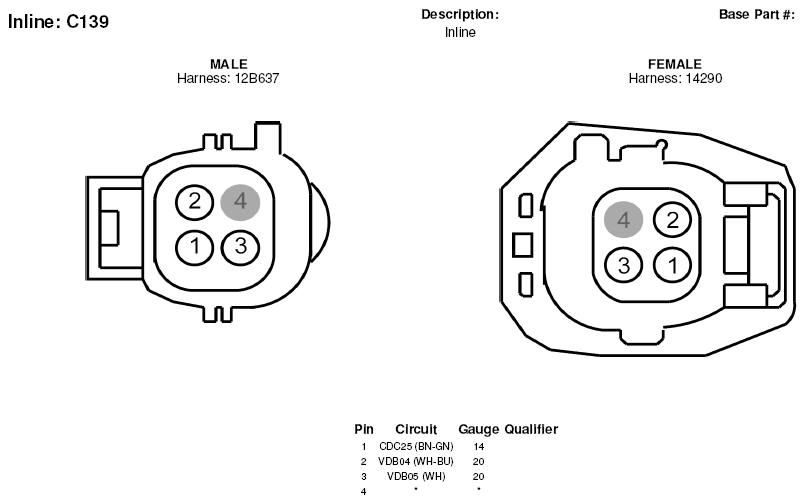

Fig 5: Inline Connector End View (C139)

G05180568

Courtesy of FORD MOTOR CO.

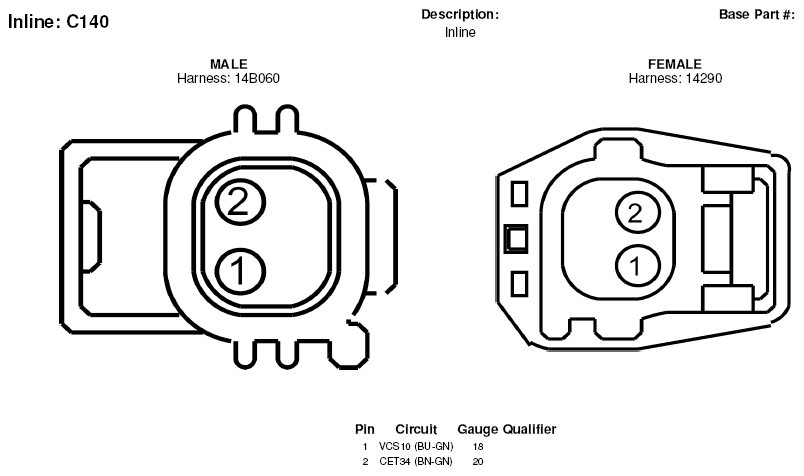

Fig 6: Inline Connector End View (C140)

G05180569

Courtesy of FORD MOTOR CO.

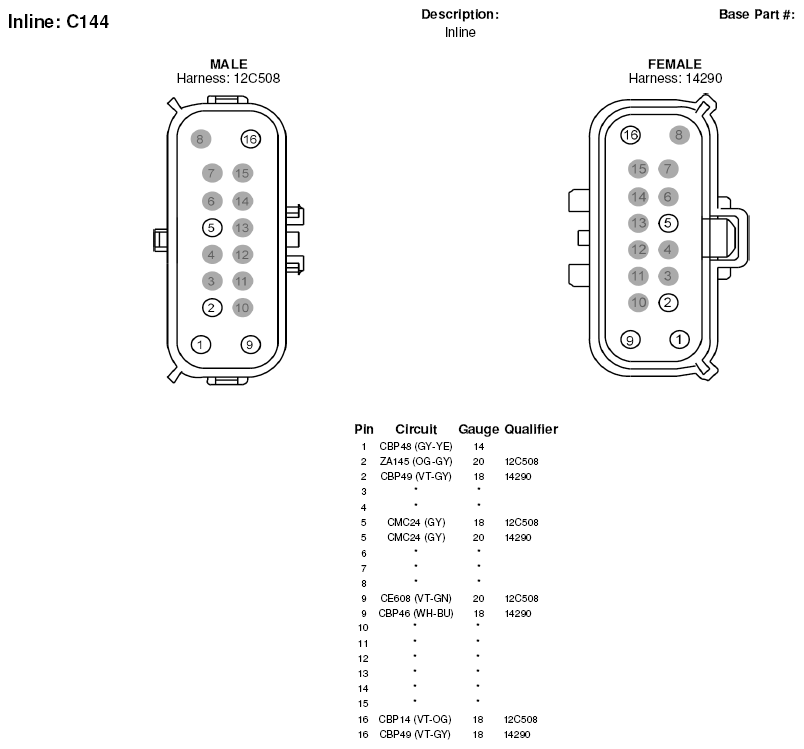

Fig 7: Inline Connector End View (C144)

G05180573

Courtesy of FORD MOTOR CO.

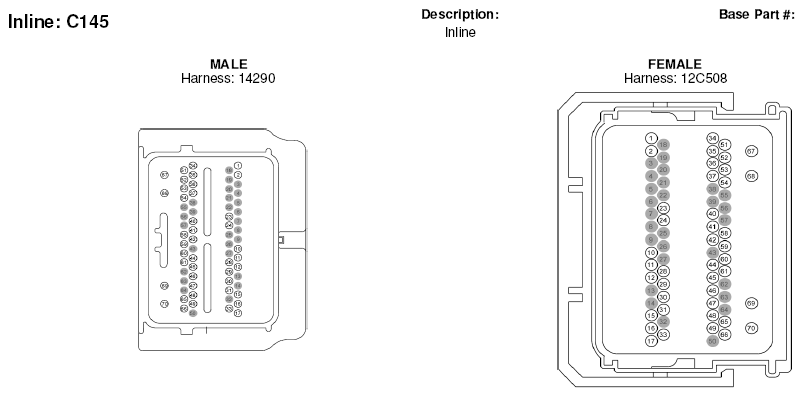

Fig 8: Inline Connector End View (C145) (1 Of 2)

G05180574

Courtesy of FORD MOTOR CO.

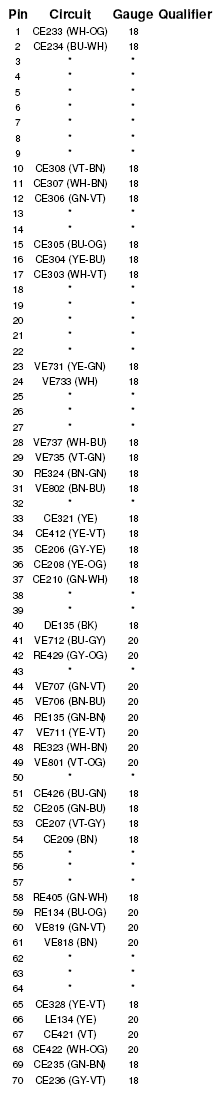

Fig 9: Inline Connector End View (C145) (2 Of 2)

G05180575

Courtesy of FORD MOTOR CO.

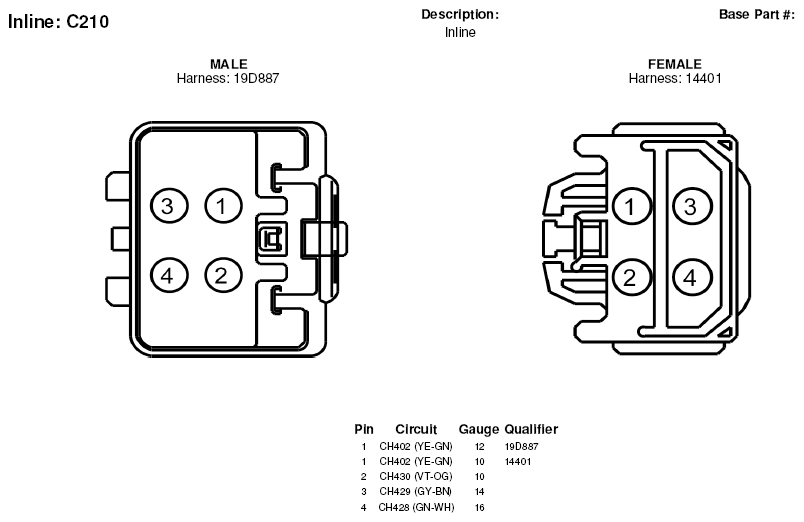

Fig 10: Inline Connector End View (C210)

G05180606

Courtesy of FORD MOTOR CO.

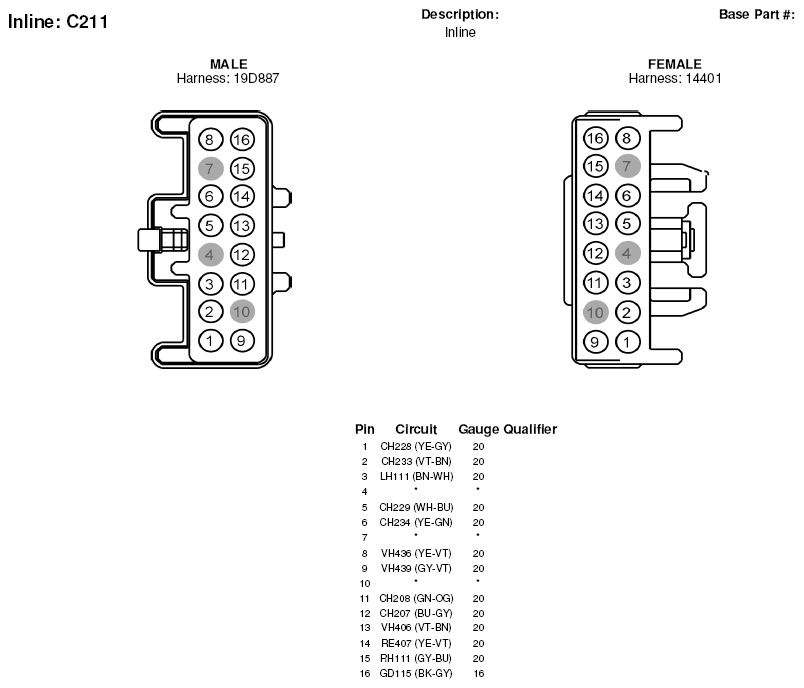

Fig 11: Inline Connector End View (C211)

G05180607

Courtesy of FORD MOTOR CO.

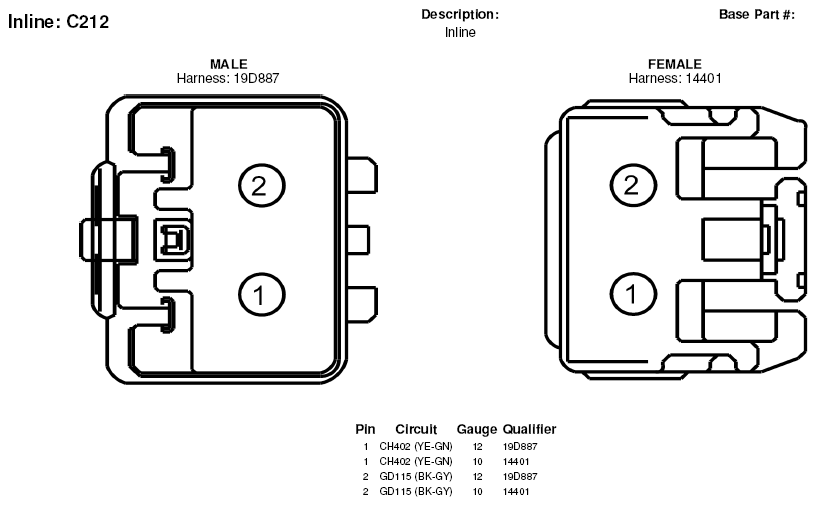

Fig 12: Inline Connector End View (C212)

G05180608

Courtesy of FORD MOTOR CO.

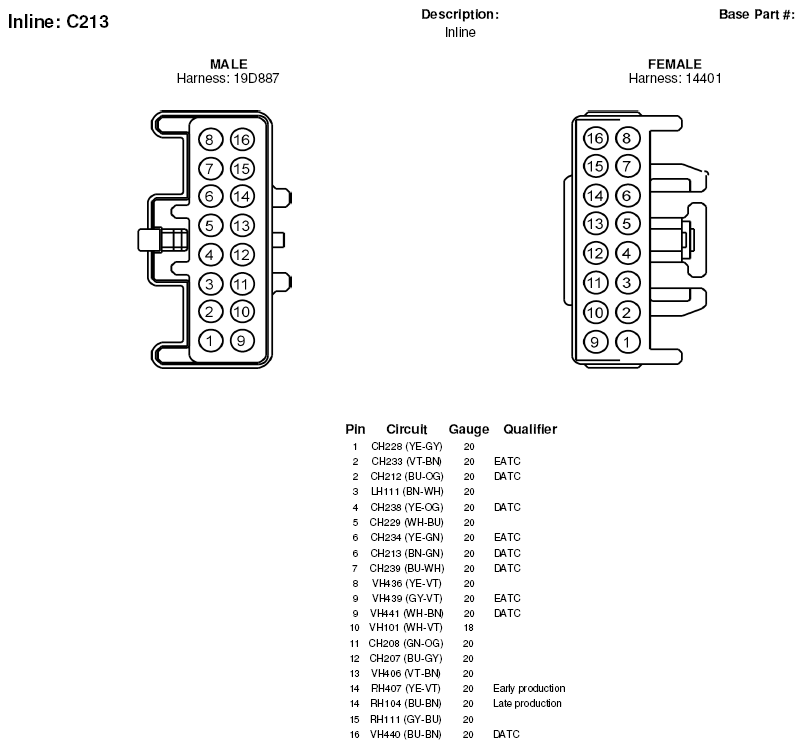

Fig 13: Inline Connector End View (C213)

G05180609

Courtesy of FORD MOTOR CO.

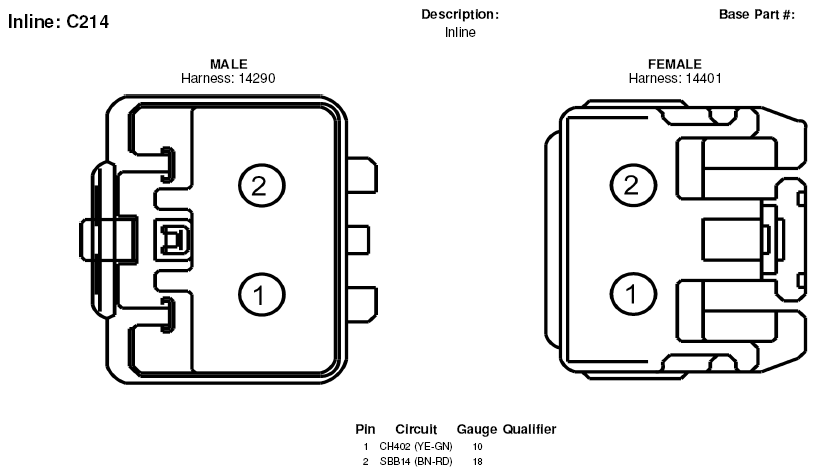

Fig 14: Inline Connector End View (C214)

G05180610

Courtesy of FORD MOTOR CO.

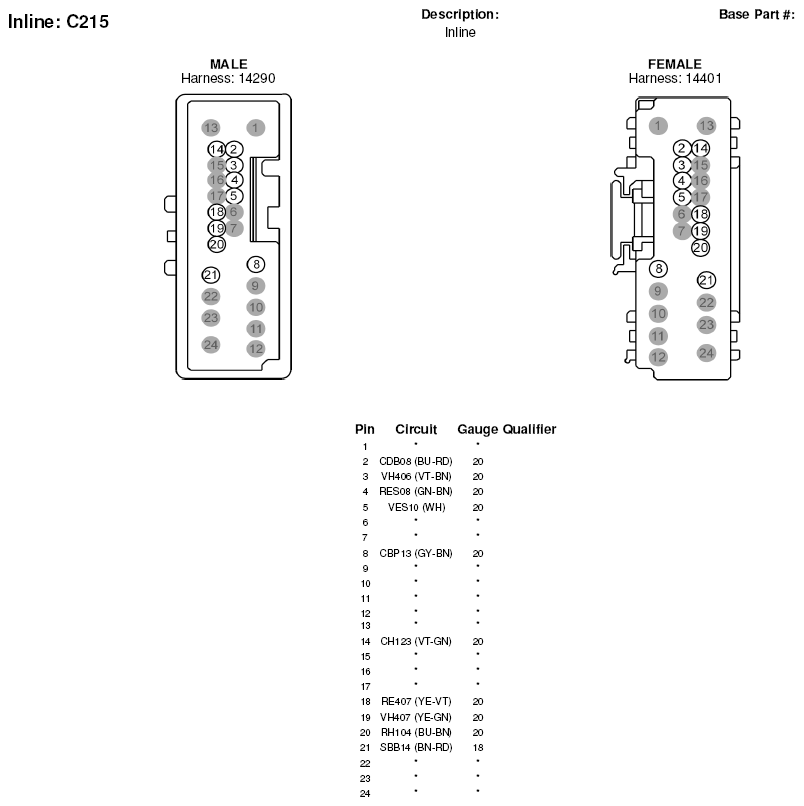

Fig 15: Inline Connector End View (C215)

G05180611

Courtesy of FORD MOTOR CO.

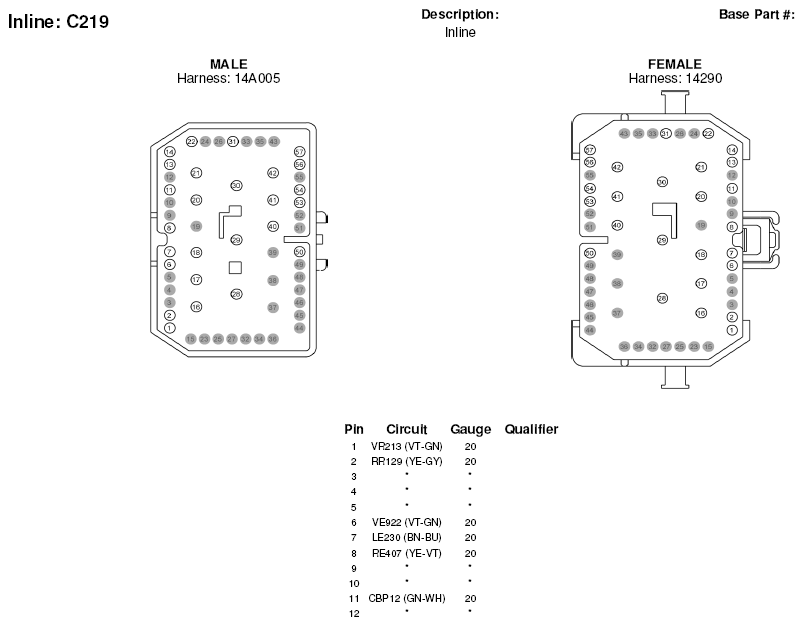

Fig 16: Inline Connector End View (C219) (1 Of 2)

G05180614

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C219) (2 Of 2)

G05180615

Courtesy of FORD MOTOR CO.

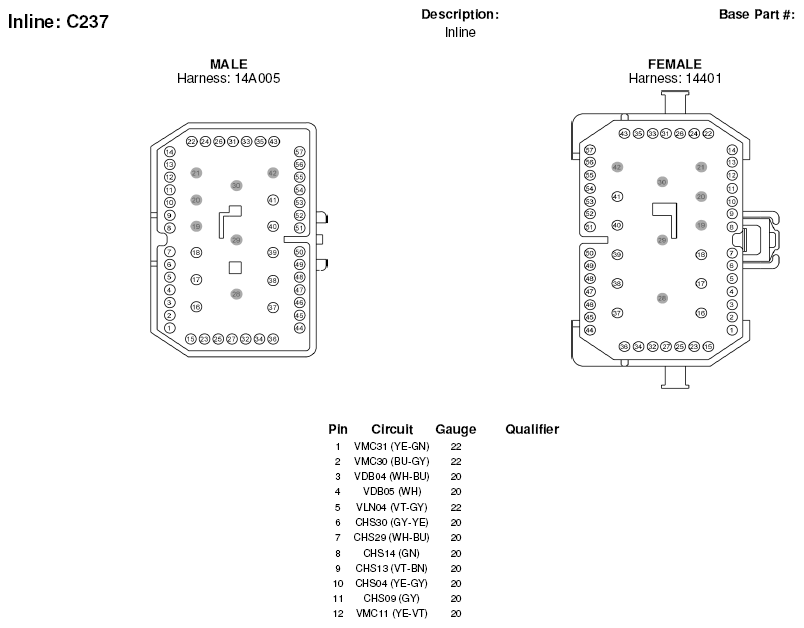

Fig 18: Inline Connector End View (C237) (1 Of 2)

G05180620

Courtesy of FORD MOTOR CO.

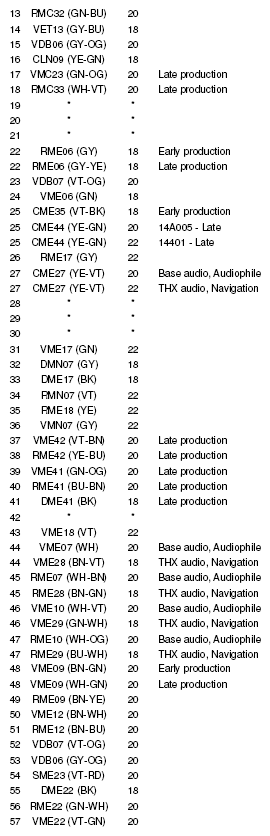

Fig 19: Inline Connector End View (C237) (2 Of 2)

G05180621

Courtesy of FORD MOTOR CO.

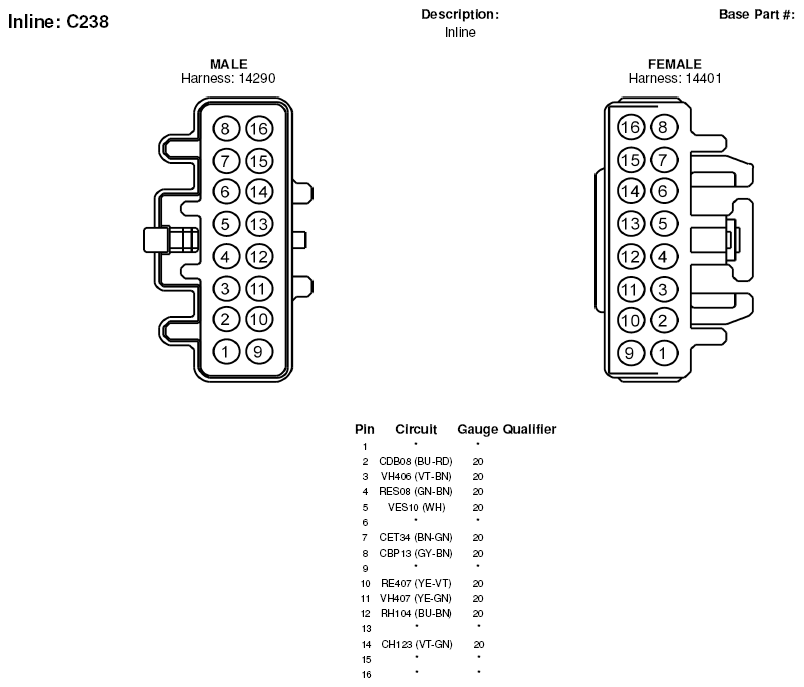

Fig 20: Inline Connector End View (C238)

G05180622

Courtesy of FORD MOTOR CO.

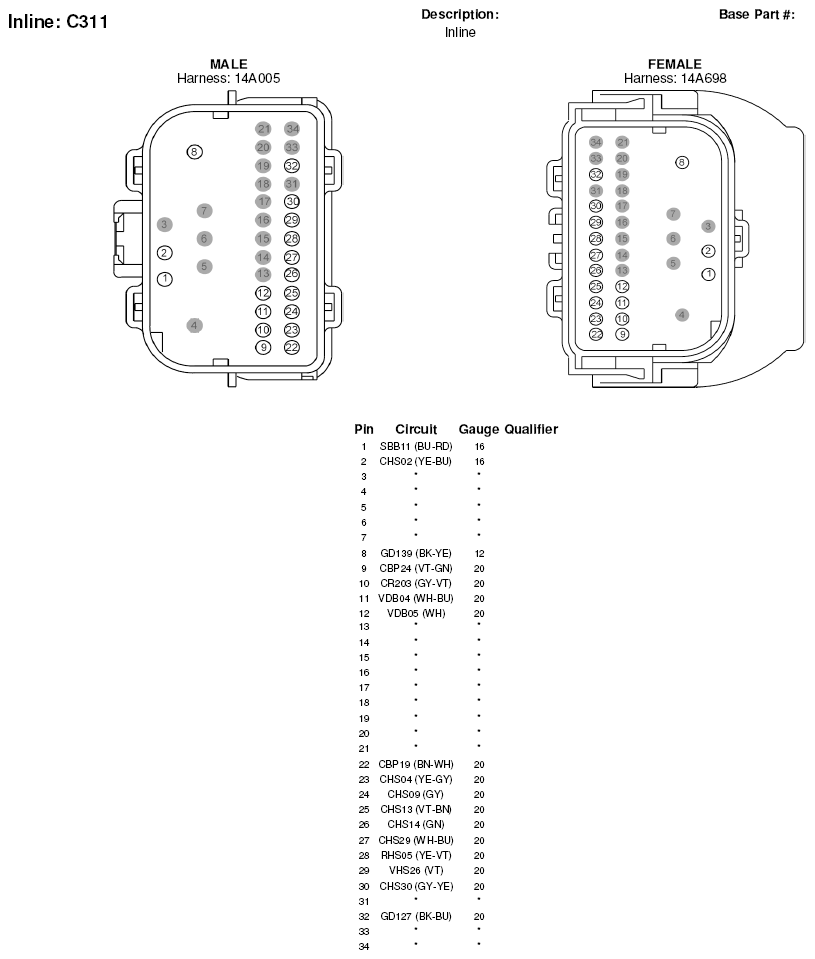

Fig 21: Inline Connector End View (C311)

G05180646

Courtesy of FORD MOTOR CO.

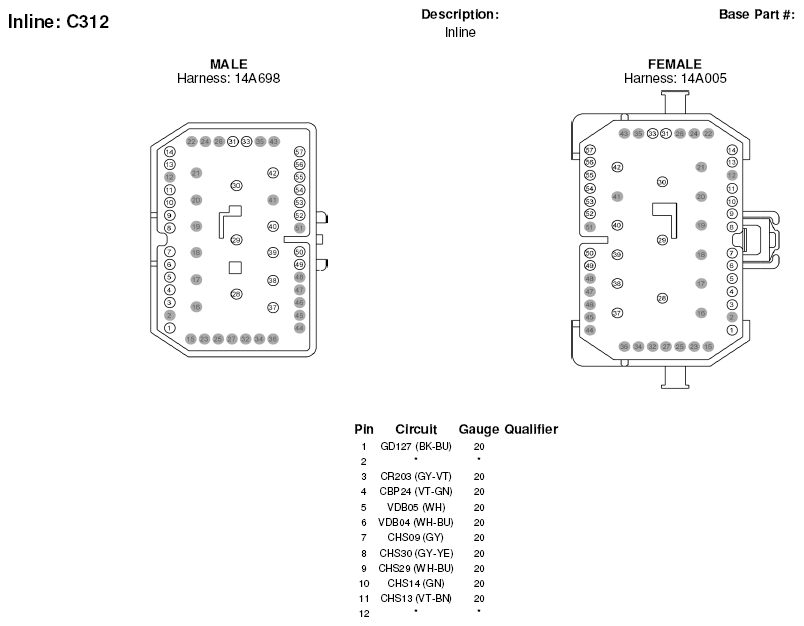

Fig 22: Inline Connector End View (C312) (1 Of 2)

G05180647

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C312) (2 Of 2)

G05180648

Courtesy of FORD MOTOR CO.

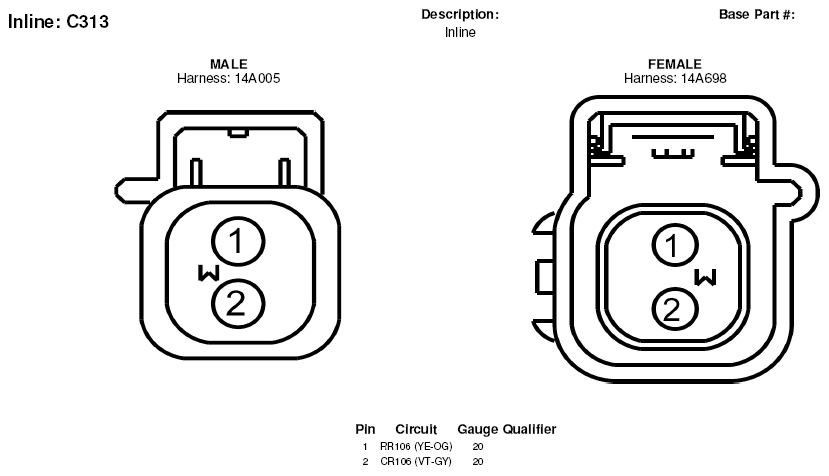

Fig 24: Inline Connector End View (C313)

G05180649

Courtesy of FORD MOTOR CO.

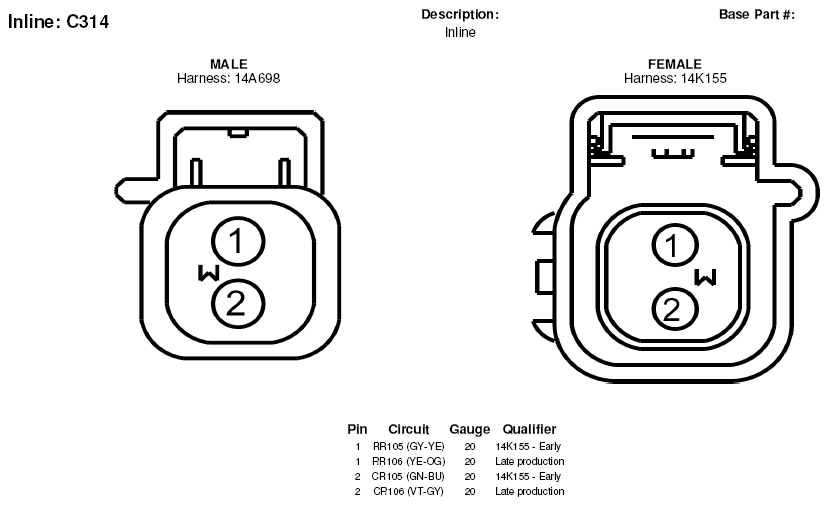

Fig 25: Inline Connector End View (C314)

G05180650

Courtesy of FORD MOTOR CO.

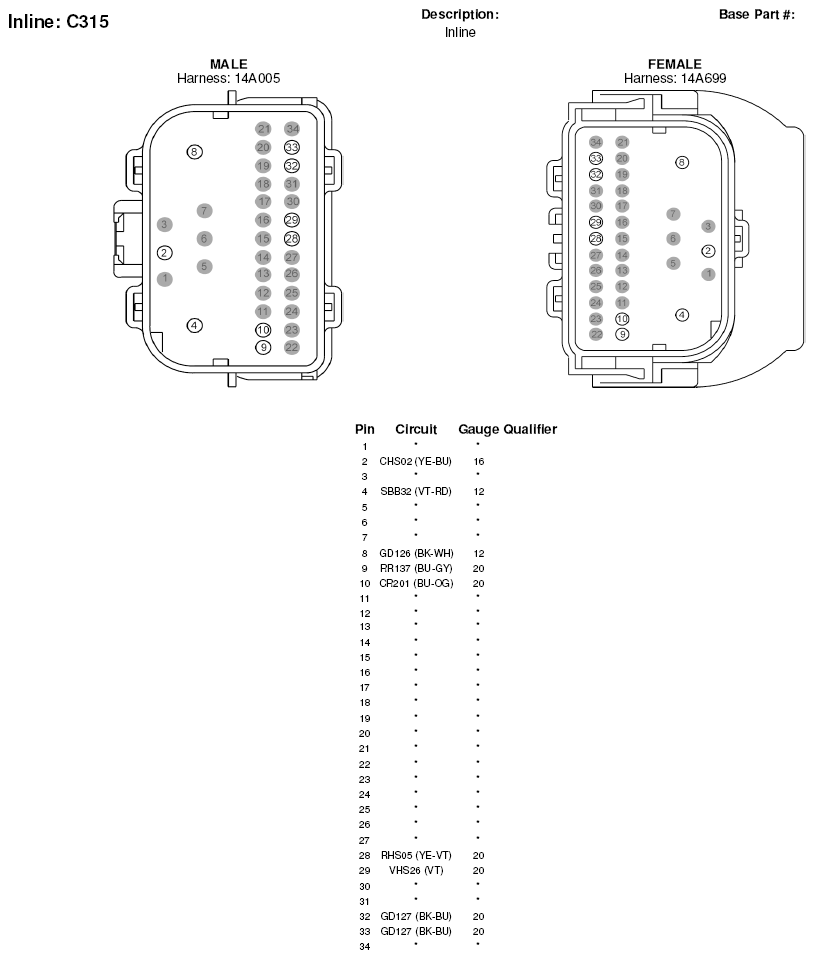

Fig 26: Inline Connector End View (C315)

G05180651

Courtesy of FORD MOTOR CO.

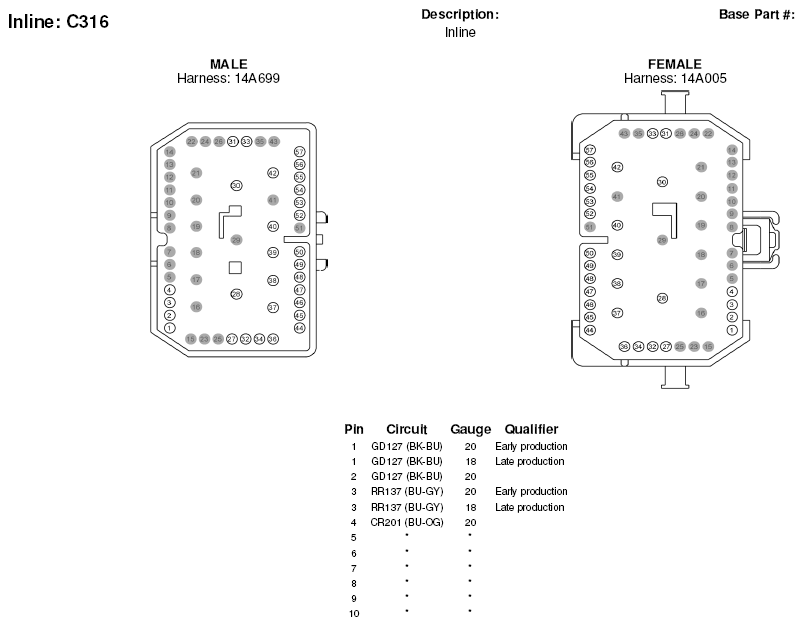

Fig 27: Inline Connector End View (C316) (1 Of 2)

G05180652

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C316) (2 Of 2)

G05180653

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C327)

G05180656

Courtesy of FORD MOTOR CO.

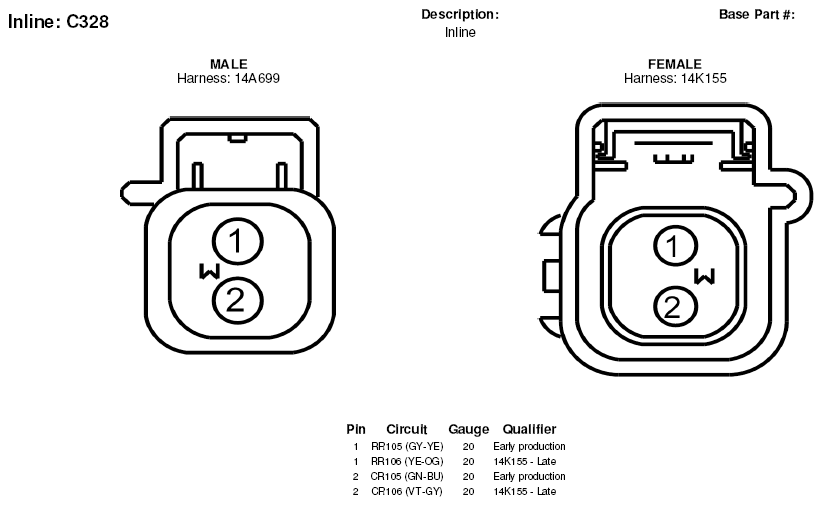

Fig 30: Inline Connector End View (C328)

G05180657

Courtesy of FORD MOTOR CO.

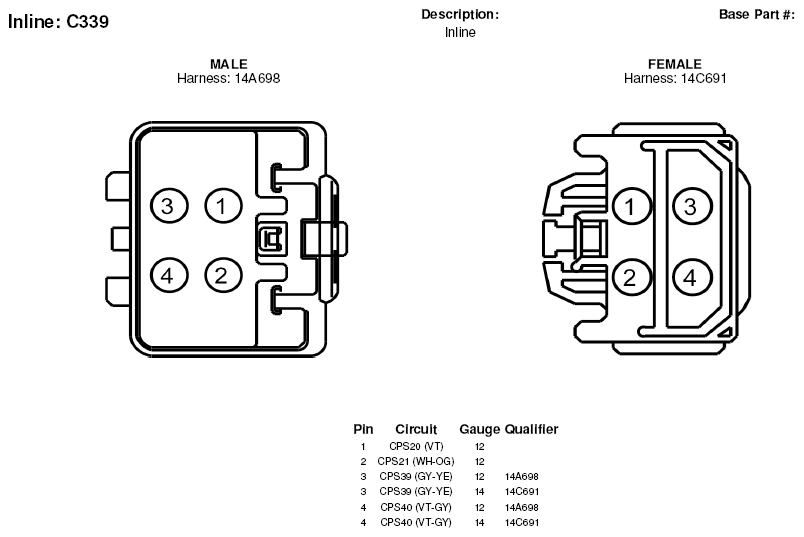

Fig 31: Inline Connector End View (C339)

G05180661

Courtesy of FORD MOTOR CO.

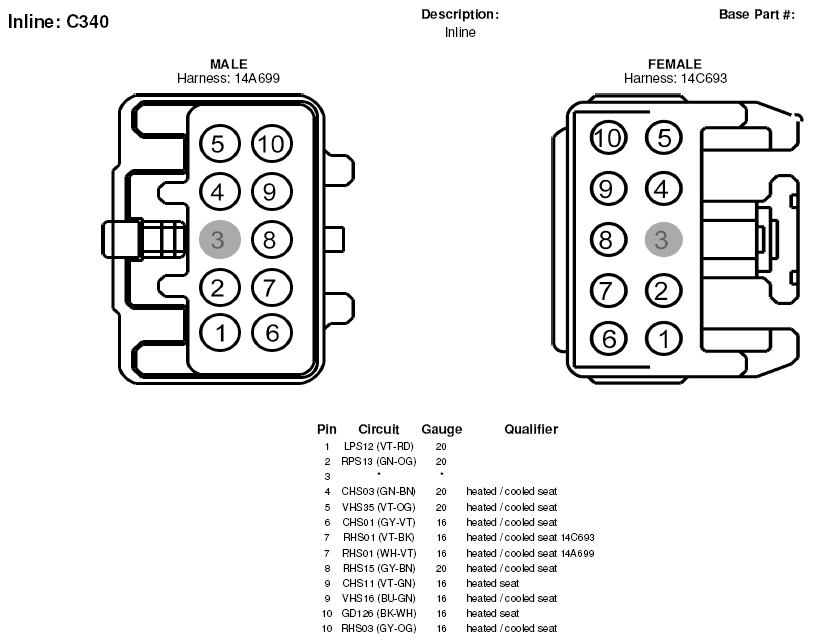

Fig 32: Inline Connector End View (C340)

G05180662

Courtesy of FORD MOTOR CO.

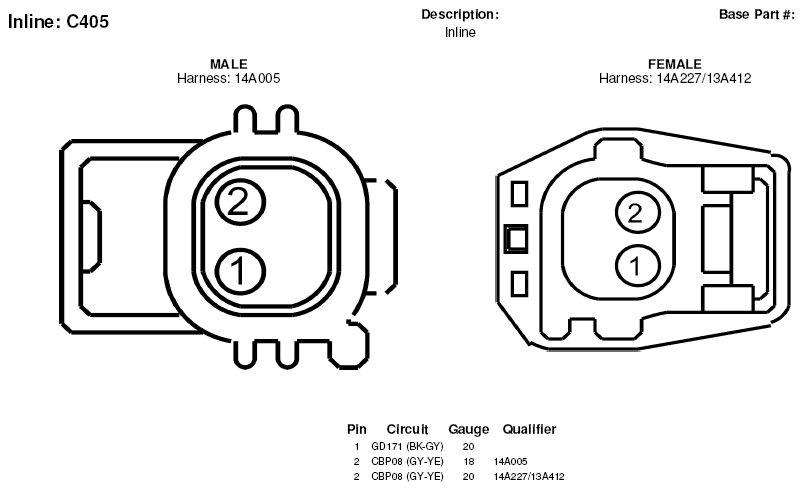

Fig 33: Inline Connector End View (C405)

G05180674

Courtesy of FORD MOTOR CO.

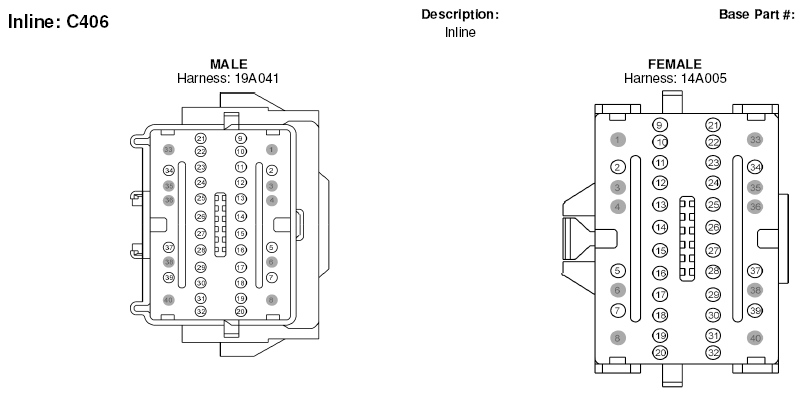

Fig 34: Inline Connector End View (C406) (1 Of 2)

G05180675

Courtesy of FORD MOTOR CO.

Fig 35: Inline Connector End View (C406) (2 Of 2)

G05180676

Courtesy of FORD MOTOR CO.

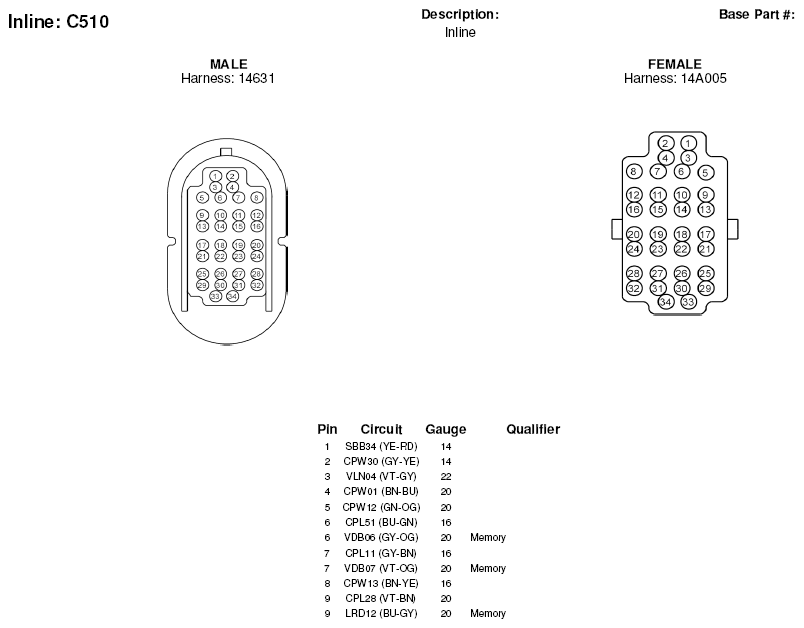

Fig 36: Inline Connector End View (C510) (1 Of 2)

G05180709

Courtesy of FORD MOTOR CO.

Fig 37: Inline Connector End View (C510) (2 Of 2)

G05180710

Courtesy of FORD MOTOR CO.

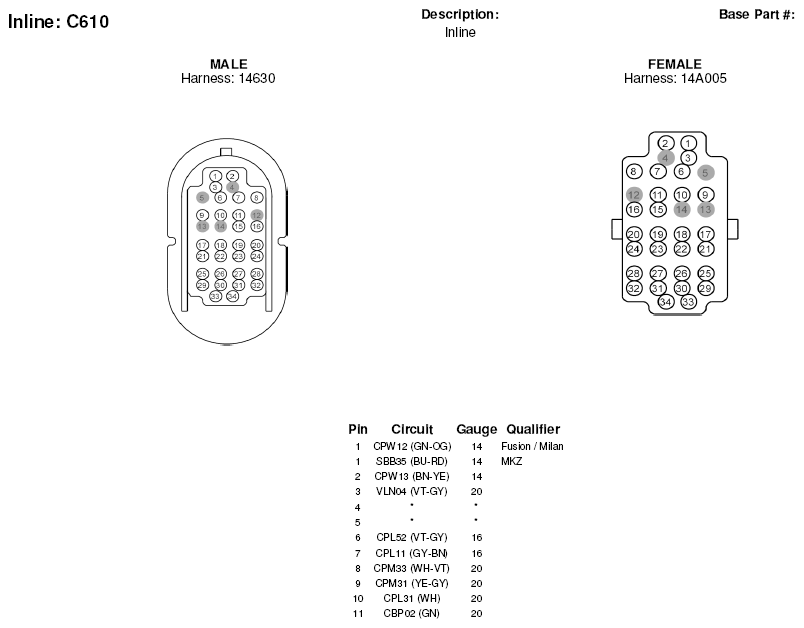

Fig 38: Inline Connector End View (C610) (1 Of 2)

G05180730

Courtesy of FORD MOTOR CO.

Fig 39: Inline Connector End View (C610) (2 Of 2)

G05180731

Courtesy of FORD MOTOR CO.

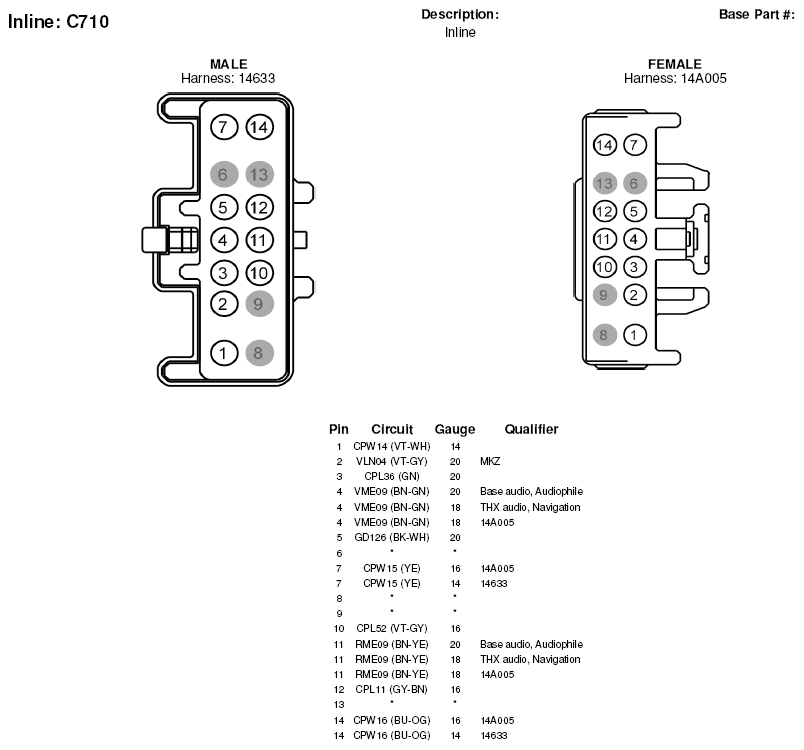

Fig 40: Inline Connector End View (C710)

G05180743

Courtesy of FORD MOTOR CO.

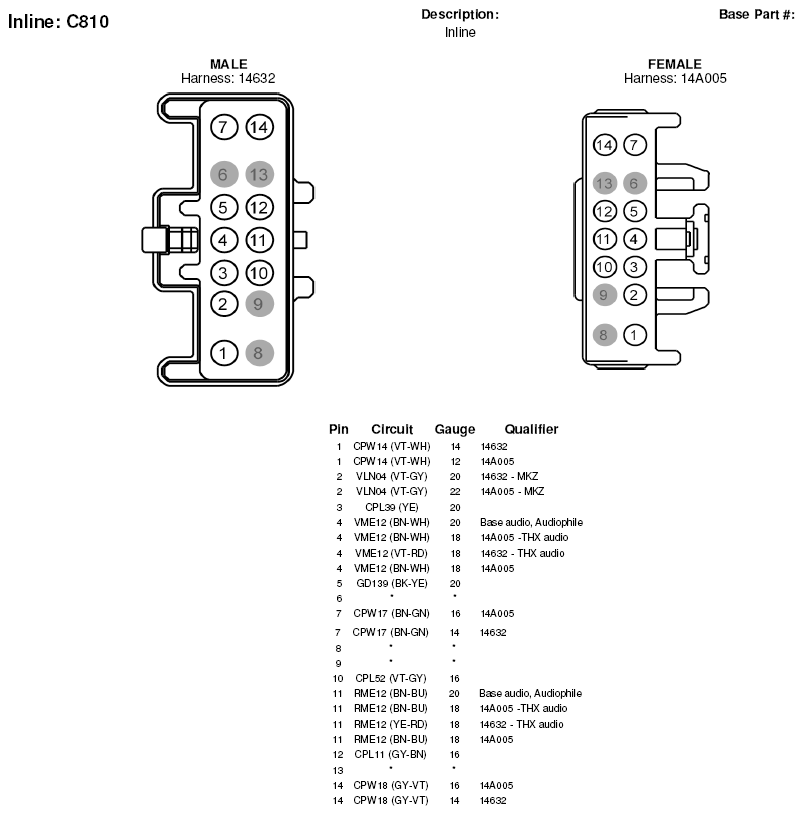

Fig 41: Inline Connector End View (C810)

G05180747

Courtesy of FORD MOTOR CO.

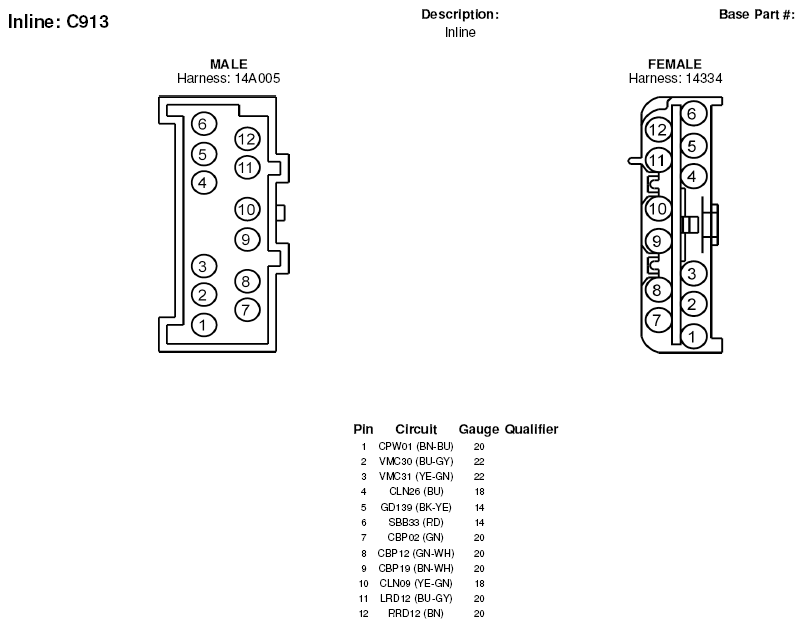

Fig 42: Inline Connector End View (C913)

G05180756

Courtesy of FORD MOTOR CO.

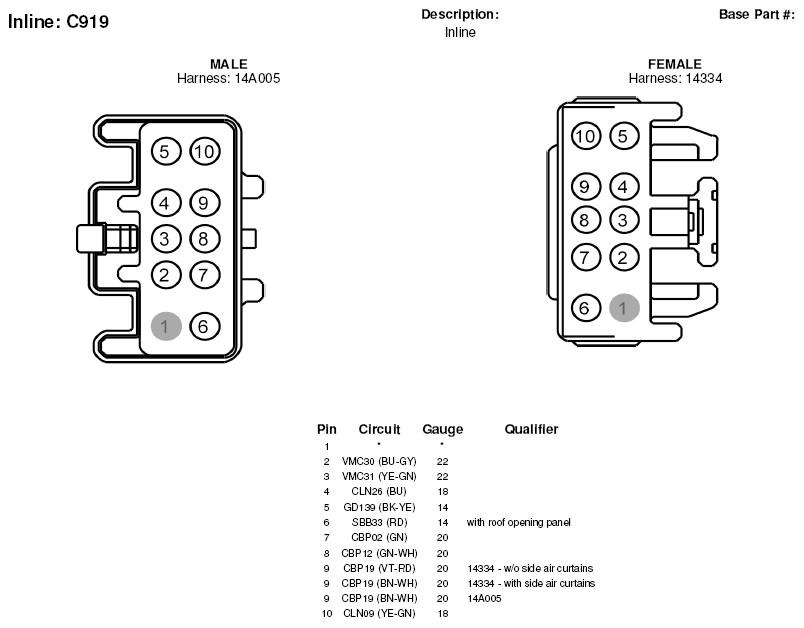

Fig 43: Inline Connector End View (C919)

G05180758

Courtesy of FORD MOTOR CO.

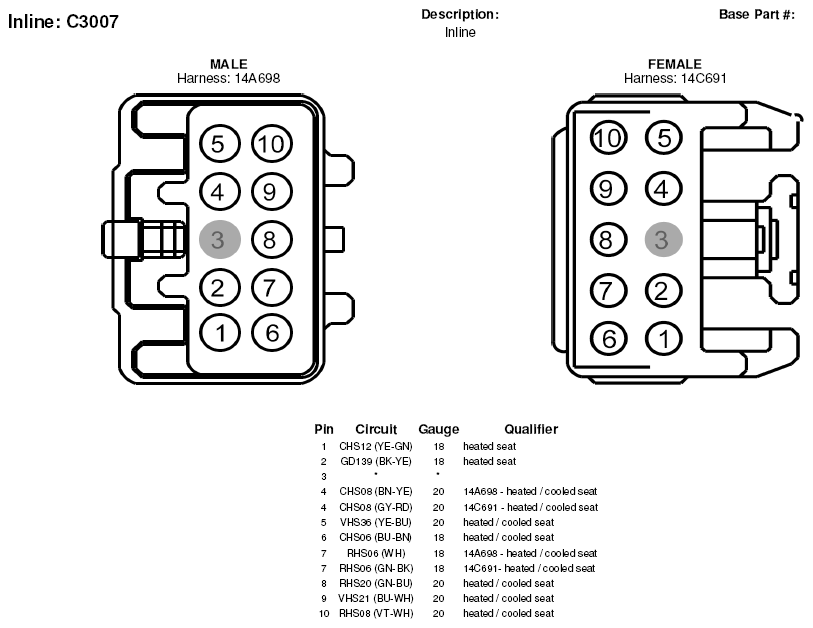

Fig 44: Inline Connector End View (C3007)

G05180849

Courtesy of FORD MOTOR CO.

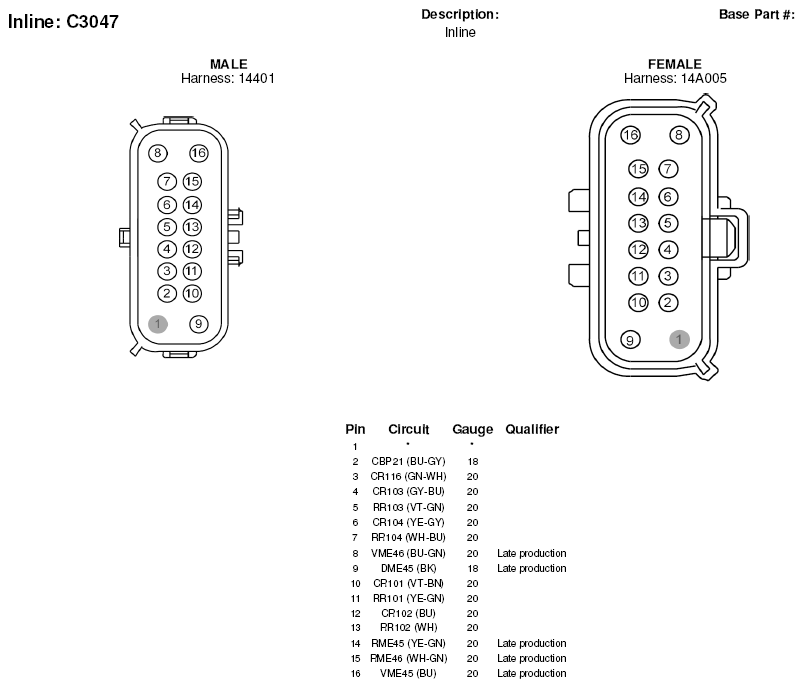

Fig 45: Inline Connector End View (C3047)

G05180851

Courtesy of FORD MOTOR CO.

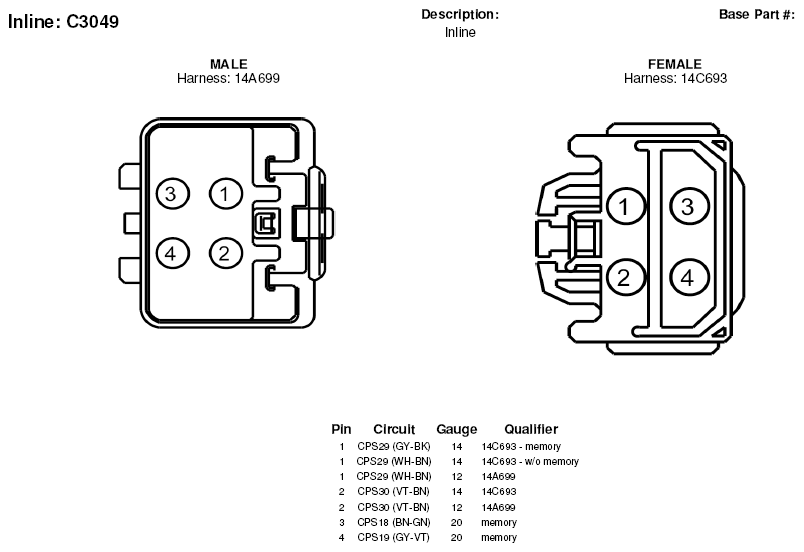

Fig 46: Inline Connector End View (C3049)

G05180852

Courtesy of FORD MOTOR CO.

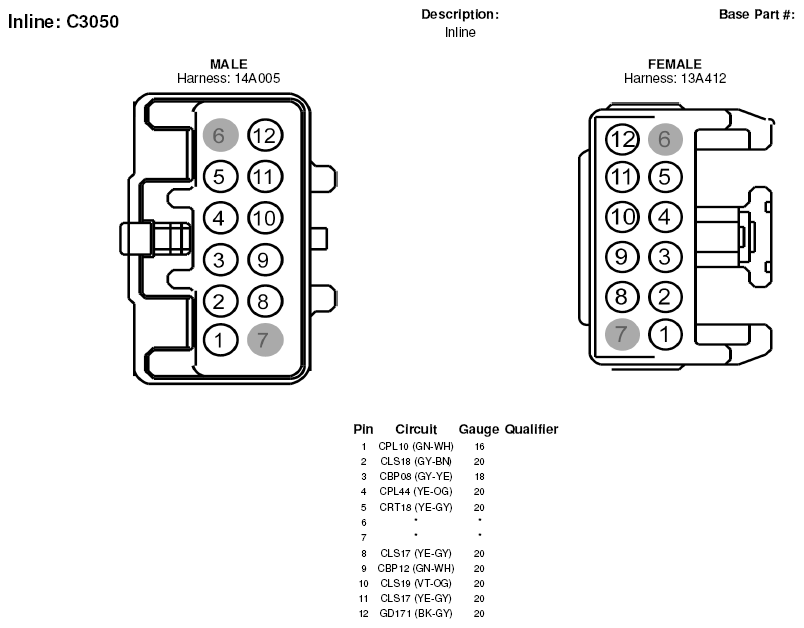

Fig 47: Inline Connector End View (C3050)

G05180853

Courtesy of FORD MOTOR CO.
