Seat - Front: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

NOTE: Passenger seat shown, driver seat similar.

NOTE: The seat track-to-floor bolts must be tightened in the sequence described in this procedure.

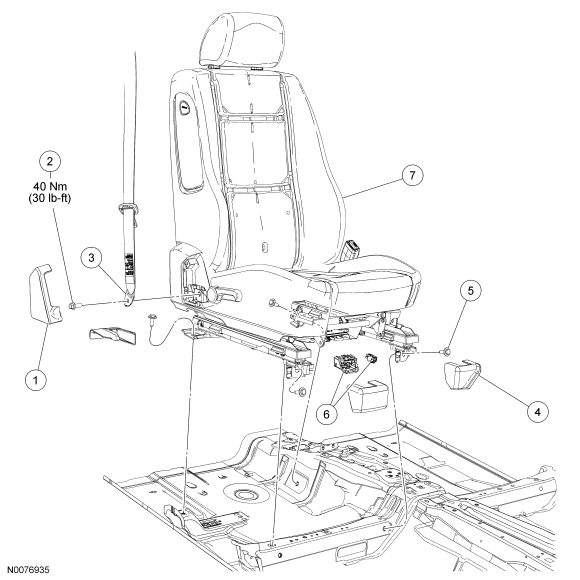

Fig 1: Exploded View Of Front Seat With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	621A44	Safety belt retractor belt anchor bolt cover (part of 62184) (passenger only)
2	W505274	Safety belt retractor belt anchor bolt (passenger only)
3	-	Safety belt retractor belt anchor (part of 611B08) (passenger only)
4	-	Seat-to-floor bolt cover (4 required)
5	W707858	Seat-to-floor bolts (4 required)
6	-	Electrical connectors (part of 14A698)
7	-	Front seat assembly
