Exterior Mirrors - Exploded View

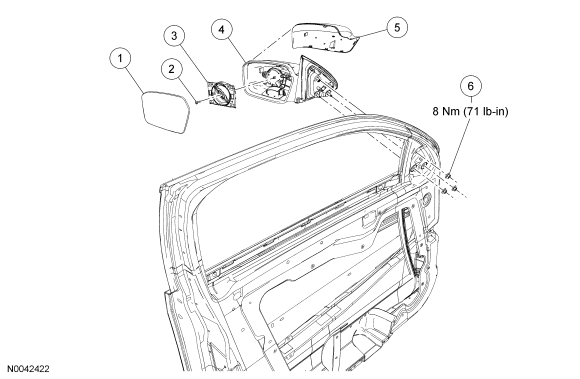

Fig 1: Exploded View Of Exterior Mirrors With Torque Specification
GF0028241Courtesy of FORD MOTOR CO.
Item Part Number Description
1 17K707 Exterior rear view mirror glass
2 - Exterior rear view mirror motor mounting screw
3 17D696 Exterior rear view mirror motor
4 17682 Exterior rear view mirror housing
5 17D742 Exterior rear view mirror cover
6 N621906 Exterior rear view mirror mounting nut (3 required)
  1. For additional information, refer to the appropriate procedures.
