Powertrain Control Module Connectors

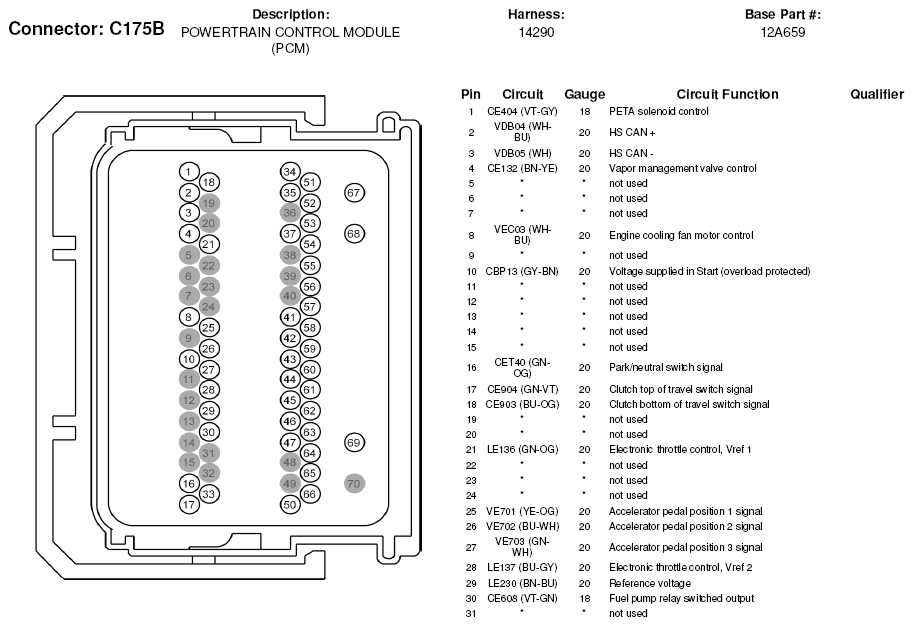

Fig 1: Powertrain Control Module Connector End View (C175B) (1 Of 2)
G05180586Courtesy of FORD MOTOR CO.

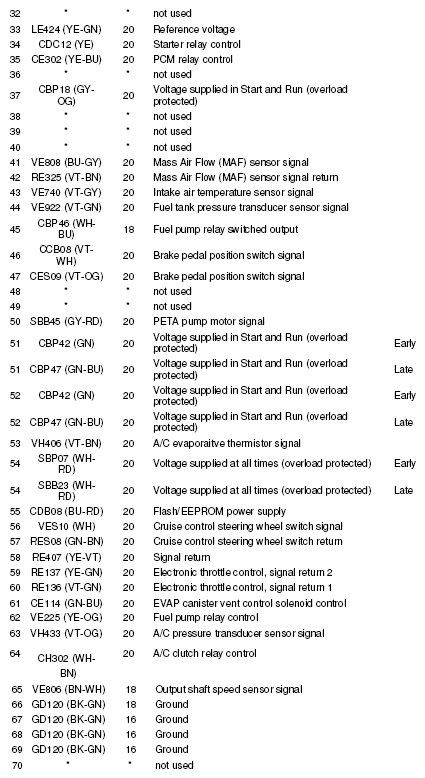

Fig 2: Powertrain Control Module Connector End View (C175B) (2 Of 2)
G05180587Courtesy of FORD MOTOR CO.

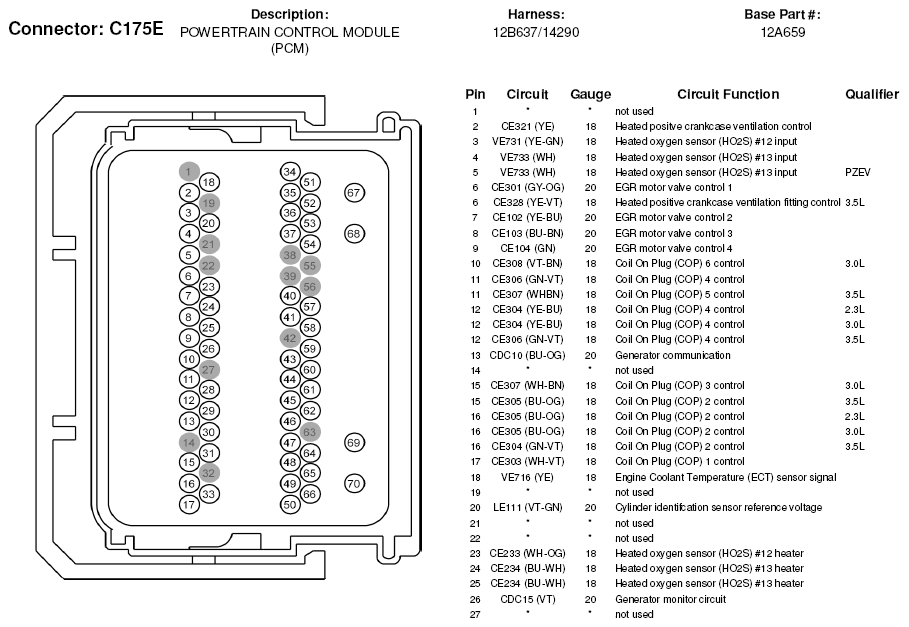

Fig 3: Powertrain Control Module Connector End View (C175E) (1 Of 2)
G05180588Courtesy of FORD MOTOR CO.

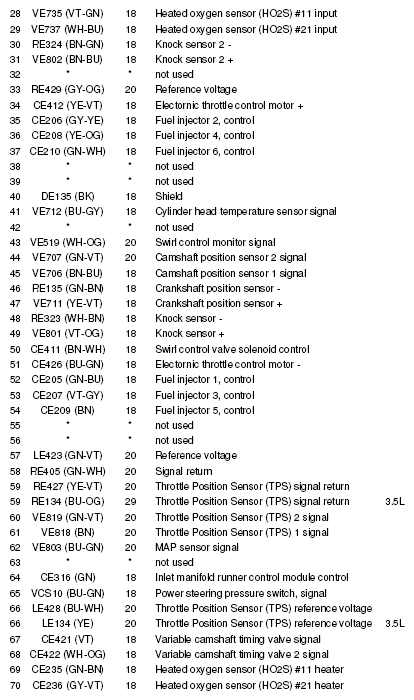

Fig 4: Powertrain Control Module Connector End View (C175E) (2 Of 2)
G05180589Courtesy of FORD MOTOR CO.
