Accelerator Pedal Position Sensor Connector

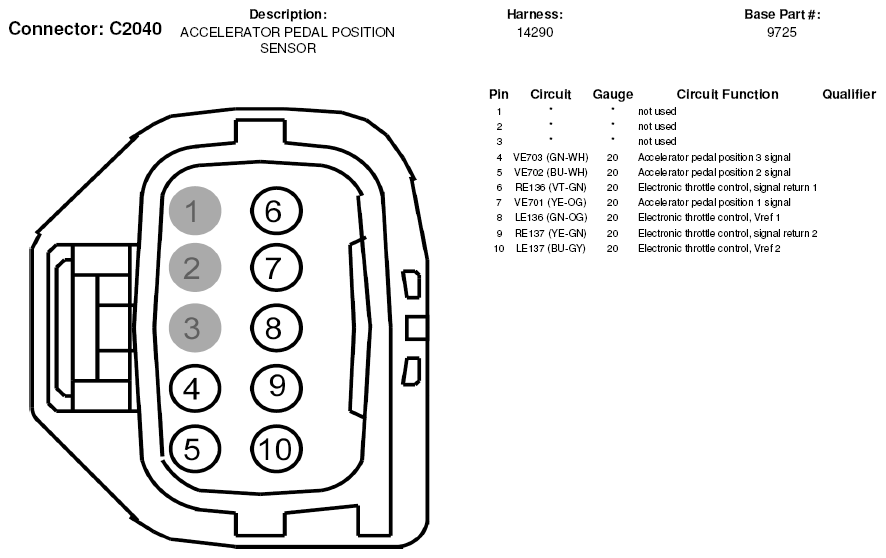

Fig 1: Accelerator Pedal Position Sensor Connector End View (C2040)

G05180821

Courtesy of FORD MOTOR CO.
