Jacking Points - Front

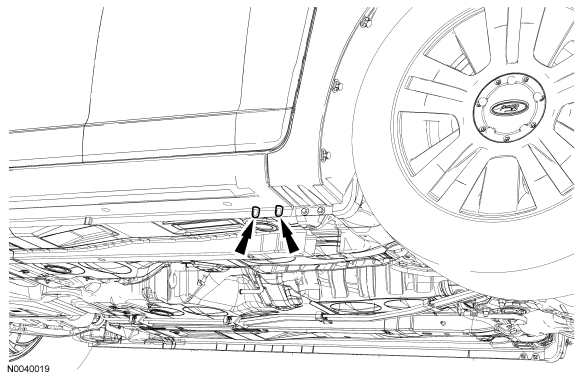

Fig 1: Identifying Jacking Points - Front
GF0028152Courtesy of FORD MOTOR CO.
  1. The front jacking points are identified by 2 indentations in the frame just behind the front wheels. Position the jack so its lift area fits between the 2 points.
