Electronic Throttle Control Module Connectors

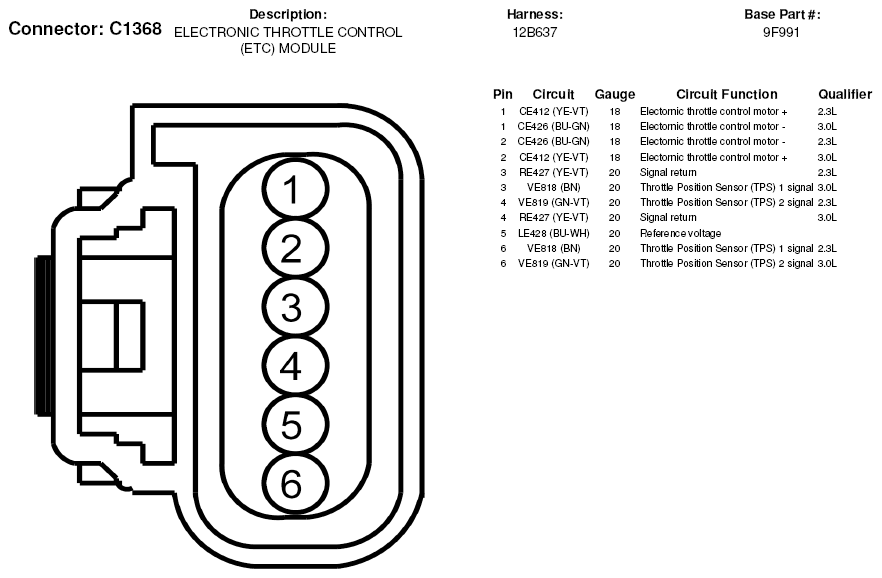

Fig 1: Electronic Throttle Control Module Connector End View (C1368)

Courtesy of FORD MOTOR CO.

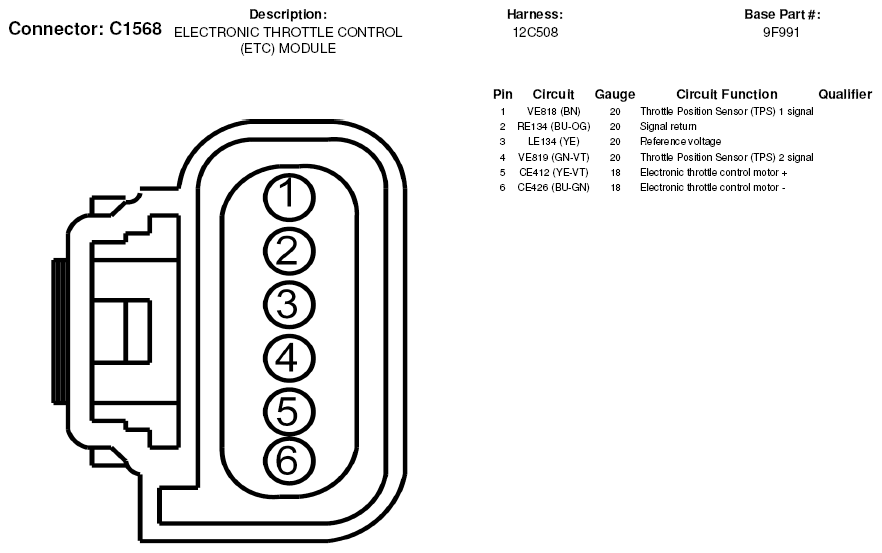

Fig 2: Electronic Throttle Control Module Connector End View (C1568)

Courtesy of FORD MOTOR CO.
