Cylinder Head Temperature (CHT) Sensor: Notes

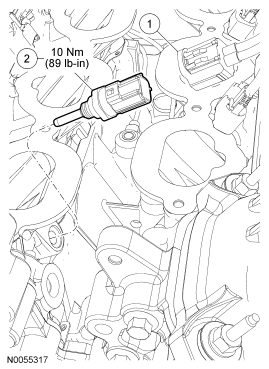

Fig 1: Exploded View Of Cylinder Head Temperature (CHT) Sensor With Torque Specifications
GF0029451Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Cylinder head temperature (CHT) sensor electrical connector
2 6G004 CHT sensor
