Transmission Control Module (TCM): Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.3L or INTAKE AIR DISTRIBUTION & FILTERING - 3.0L (4V) .
Disconnect the shift cable end.

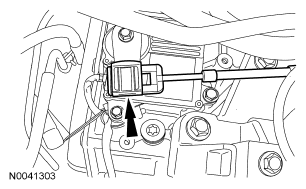

Fig 1: Locating Shift Cable End
Courtesy of FORD MOTOR CO.
Disconnect the transmission control module (TCM) electrical connector.

Fig 2: Locating TCM Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the manual control lever nut.

Fig 3: Locating Manual Control Lever Nut
Courtesy of FORD MOTOR CO.
Remove the manual control lever.

Fig 4: Locating Manual Control Lever
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the TCM.

Fig 5: Locating Bolts On TCM
Courtesy of FORD MOTOR CO.
