Transaxle Support Insulator: Notes

SPECIAL TOOLS REFERENCE

G04681522Courtesy of FORD MOTOR CO.
 Universal Adapter Brackets
014-0001
G04681523Courtesy of FORD MOTOR CO.
 Lifting Bracket, Engine
303-050 (T70P-6000)
G04681524Courtesy of FORD MOTOR CO.
 Support Bar, Engine
303-290A
G04681525Courtesy of FORD MOTOR CO.
 Adapters for 303-290
303-290-01
G04681526Courtesy of FORD MOTOR CO.
 Adapter for 303-290A (Support Leg)
303-290A-03A
G04681527Courtesy of FORD MOTOR CO.
 Adapter for 303-290A (Lifting Hook)
303-290A-12
MATERIAL SPECIFICATIONS

Item Specification
Threadlock and Sealer TA-25 WSK-M2G351-A5

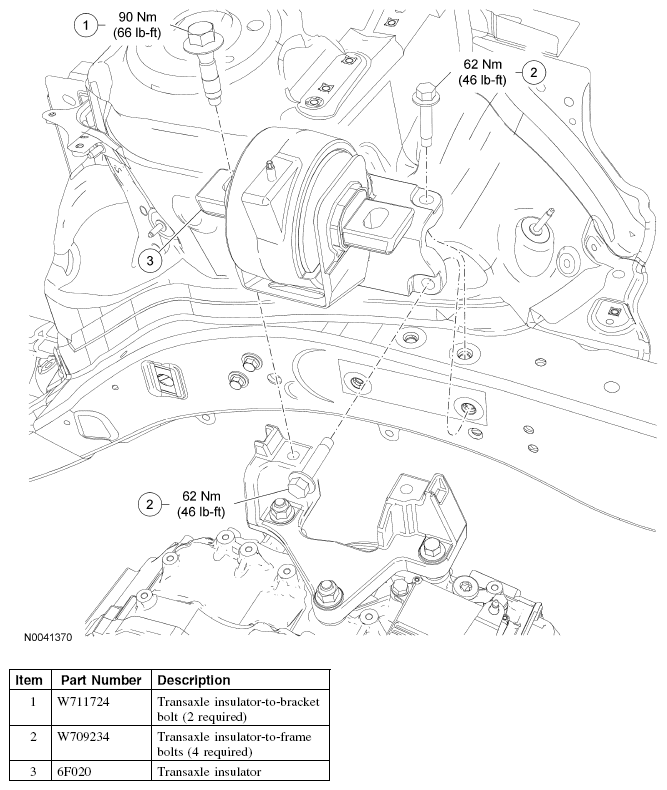

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications
G04681528Courtesy of FORD MOTOR CO.
