Toe Adjustment - Rear

  1. Using alignment equipment and the manufacturer s instructions, measure the rear toe.
  2. Loosen the toe link jam nuts.

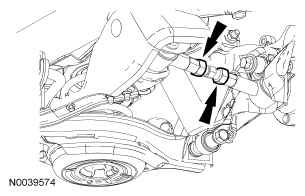

    Fig 1: Locating Toe Link Jam Nuts
    G04679605Courtesy of FORD MOTOR CO.
  3. Rotate the toe link adjusting rod until the toe setting is within specifications.
    Fig 2: Locating Toe Link Adjusting Rod
    G04679606Courtesy of FORD MOTOR CO.
    4. NOTE: Do not allow the adjusting rod to rotate while tightening the jam nuts.
  4. Tighten the toe link jam nuts to 80 Nm (59 lb-ft).
  5. Recheck the rear toe and adjust as necessary.
