Seat - Front: Notes

SPECIAL TOOL(S) CHART

Courtesy of FORD MOTOR CO.

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

NOTE: Passenger seat shown, driver seat similar.

NOTE: The seat track-to-floor bolts must be tightened in the sequence described in this procedure.

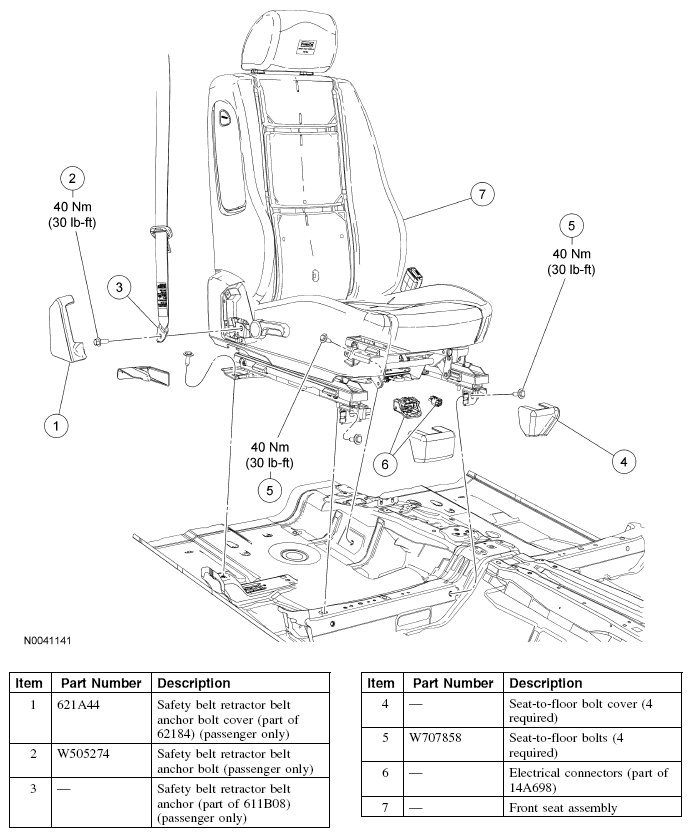

Fig 1: Front Seat Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
