Seat - Exploded View, Front

NOTE: Driver backrest shown, passenger backrest similar.

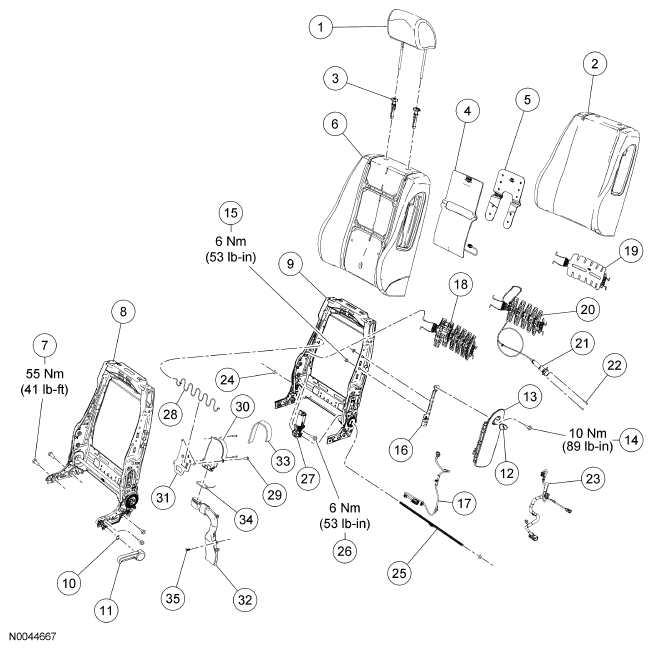

Fig 1: Exploded View Of Front Seat Front Seat Backrest With Torque Specifications
G04683472Courtesy of FORD MOTOR CO.

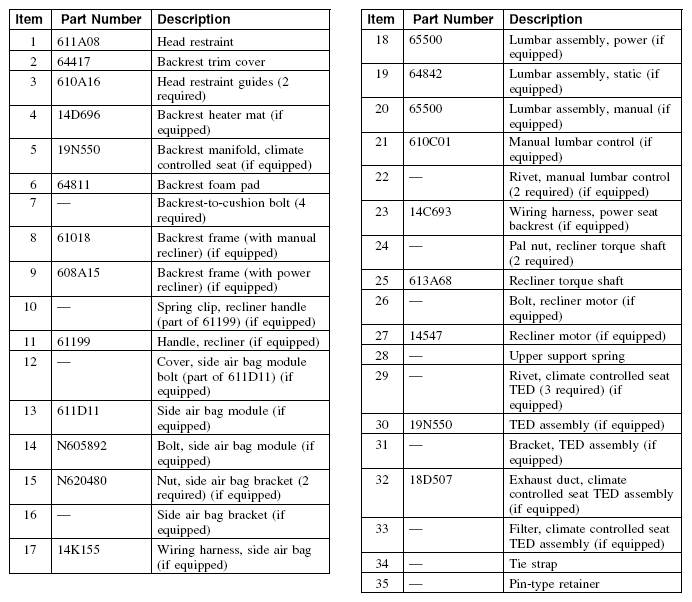

Fig 2: Item Description Of Front Seat (Front Seat Backrest)
G04683473Courtesy of FORD MOTOR CO.
NOTE: Power seat track shown, manual seat track similar.

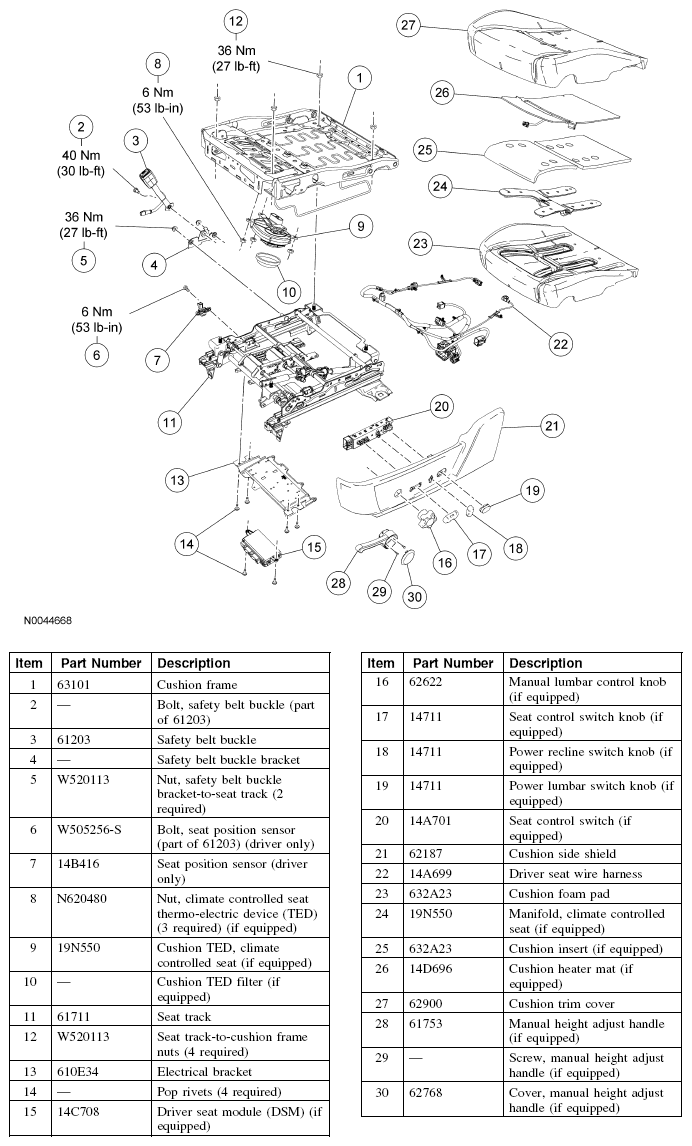

Fig 3: Exploded View Of Front Seat Driver Seat Cushion With Torque Specifications
G04683474Courtesy of FORD MOTOR CO.
NOTE: Power seat track shown, manual seat track similar.

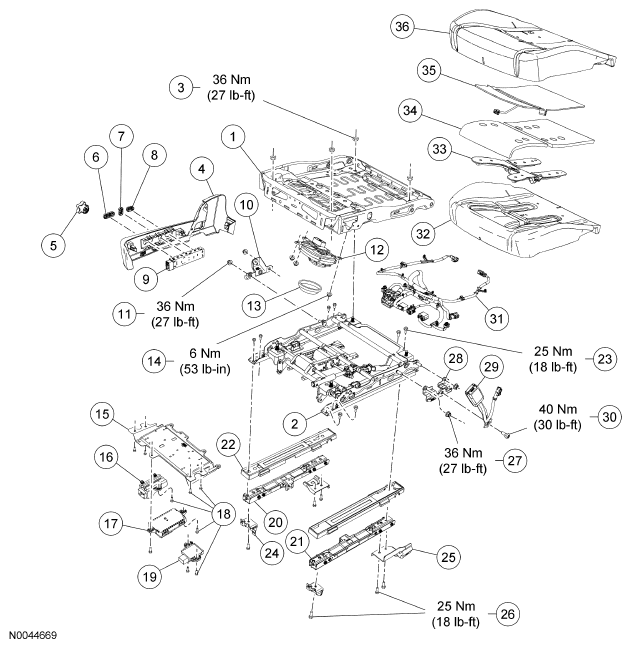

Fig 4: Exploded View Of Front Seat Passenger Seat Cushion With Torque Specifications
G04683475Courtesy of FORD MOTOR CO.

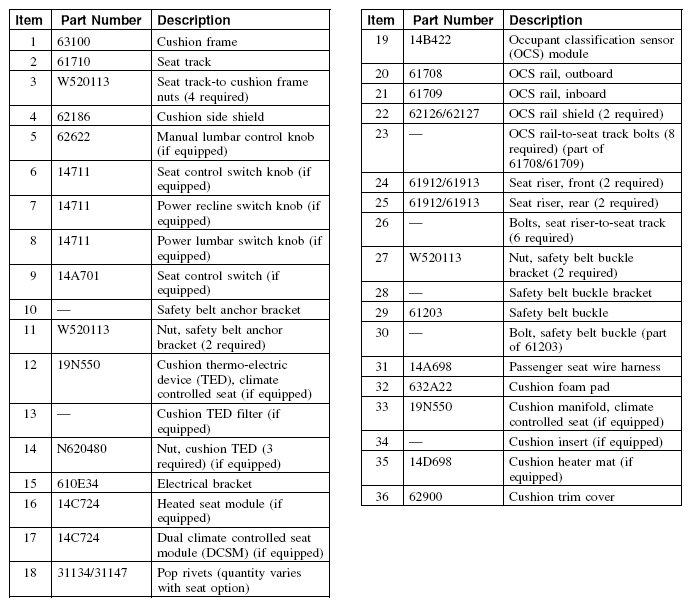

Fig 5: Item Description Of Front Seat (Passenger Seat Cushion)
G04683476Courtesy of FORD MOTOR CO.
