Seat Backrest - Front: Notes

SPECIAL TOOL(S) CHART

G04683526Courtesy of FORD MOTOR CO.
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool
NOTE: Driver backrest shown, passenger backrest similar.

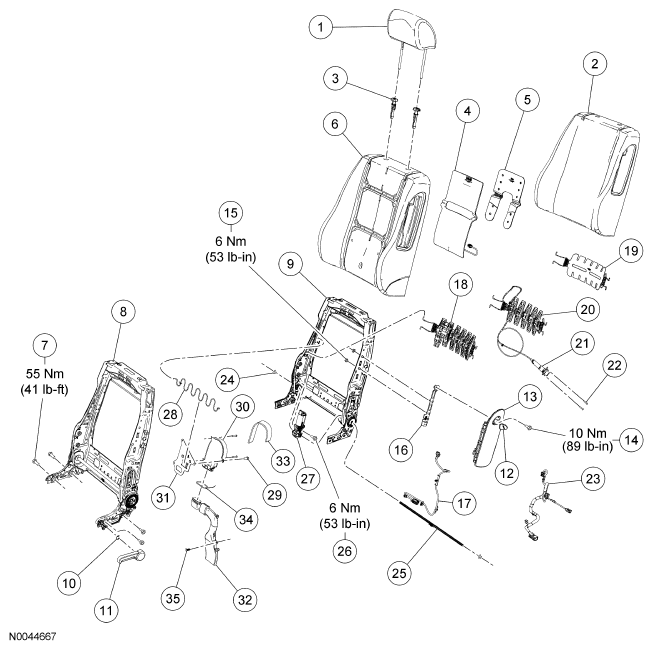

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications
G04683527Courtesy of FORD MOTOR CO.

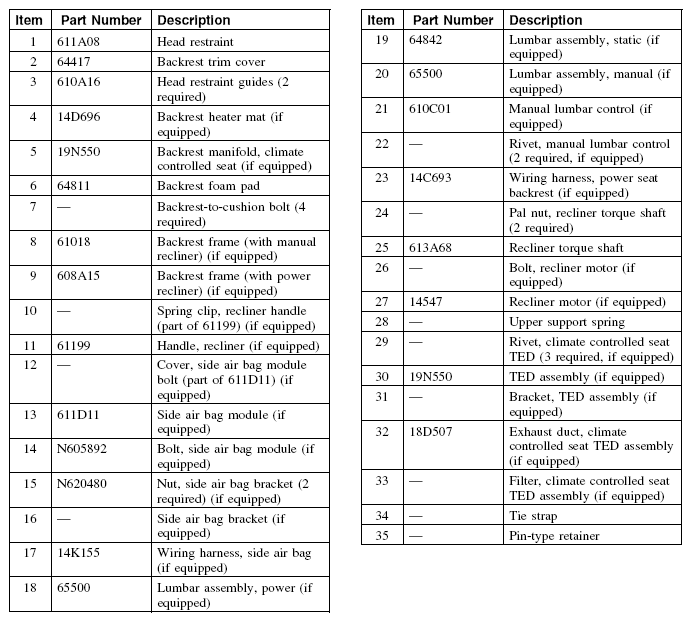

Fig 2: Item Description Of Front Seat Backrest
G04683528Courtesy of FORD MOTOR CO.
