Transmission Control Module (TCM): Installation

Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the OVERDRIVE position.

Fig 1: Locating Manual Lever Position Markings
Courtesy of FORD MOTOR CO.
Install the TCM.
- Tighten to 24 Nm (18 lb-ft).

  Fig 2: Locating Bolts On TCM
  Courtesy of FORD MOTOR CO.
Install the manual control lever.

Fig 3: Locating Manual Control Lever
Courtesy of FORD MOTOR CO.
Install the manual control lever nut.
- Tighten to 12 Nm (9 lb-ft).

  Fig 4: Locating Manual Control Lever Nut
  Courtesy of FORD MOTOR CO.

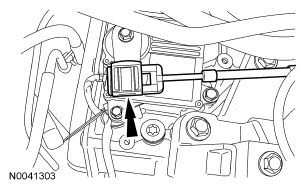

Connect the TCM electrical connector.

Fig 5: Locating TCM Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Be careful not to bend the manual control lever when installing the shift cable.

Fig 6: Locating Shift Cable End

Courtesy of FORD MOTOR CO.

Connect the shift cable end.
Install the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.3L or INTAKE AIR DISTRIBUTION & FILTERING - 3.0L (4V) .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Carry out the TCM initial learning procedure. For additional information, refer to TRANSMISSION CONTROL MODULE (TCM) INITIAL LEARNING .
Check for correct vehicle operation.
