Accelerator Pedal and Bracket: Notes

Adjustable Accelerator Pedal and Bracket Without Memory System

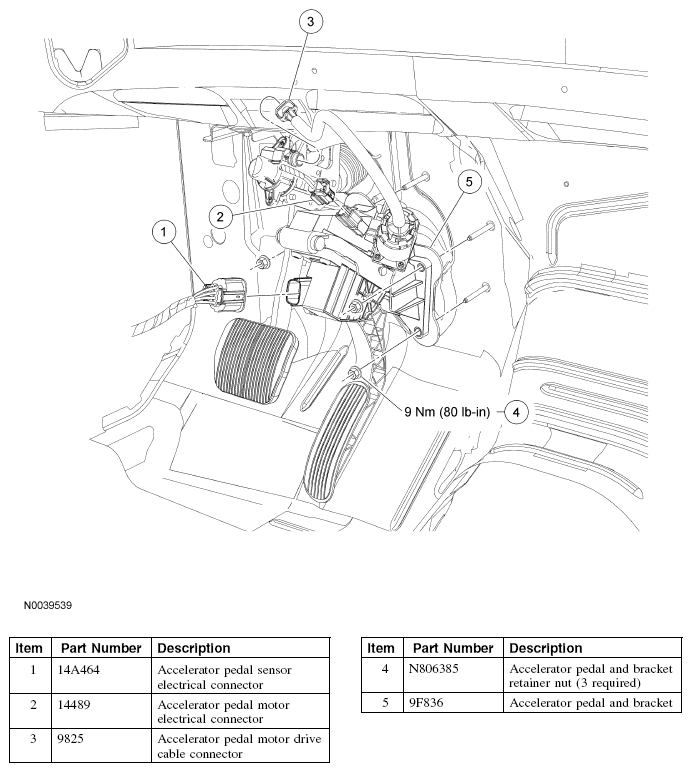

Fig 1: Exploded View Of Adjustable Accelerator Pedal And Bracket Without Memory System
G04706611Courtesy of FORD MOTOR CO.

Adjustable Accelerator Pedal and Bracket with Memory System

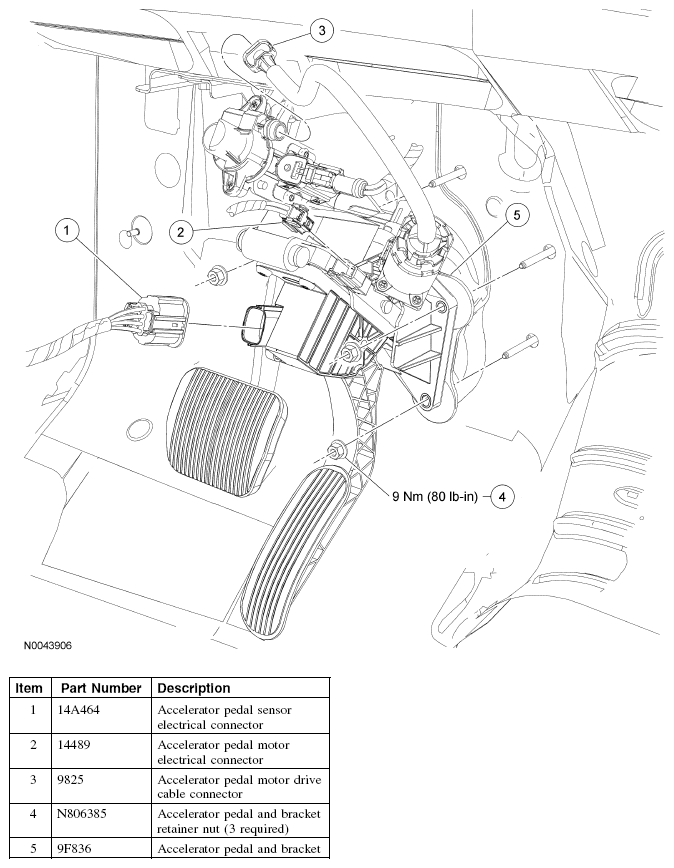

Fig 2: Exploded View Of Adjustable Accelerator Pedal And Bracket With Memory System
G04706612Courtesy of FORD MOTOR CO.
