Main Control Valve Body: Disassembly

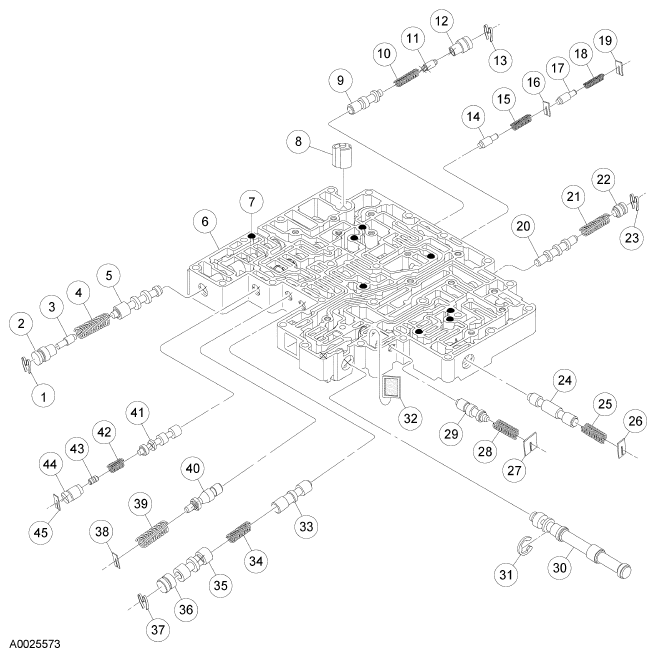

Fig 1: Exploded View Of Main Control Valve Body (1 Of 2)

Courtesy of FORD MOTOR CO.

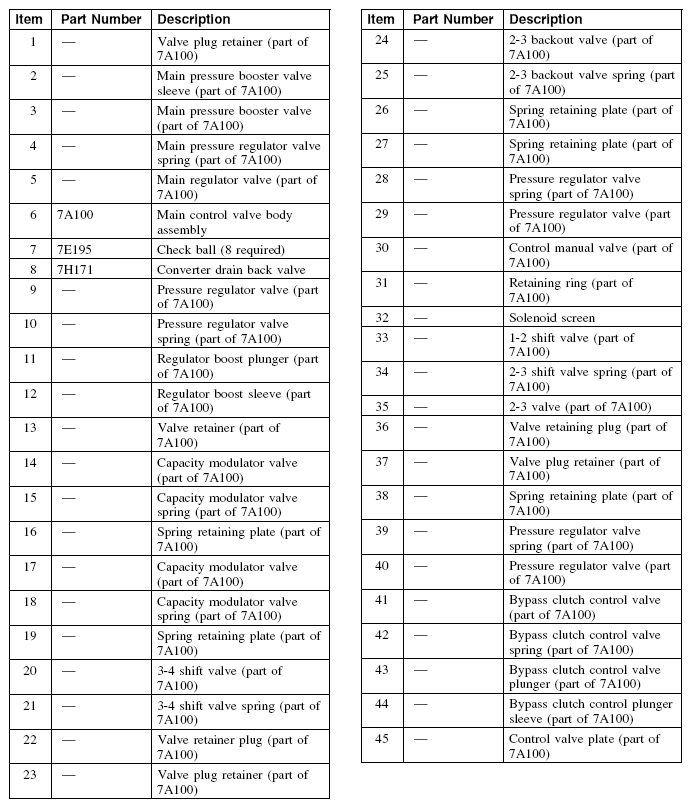

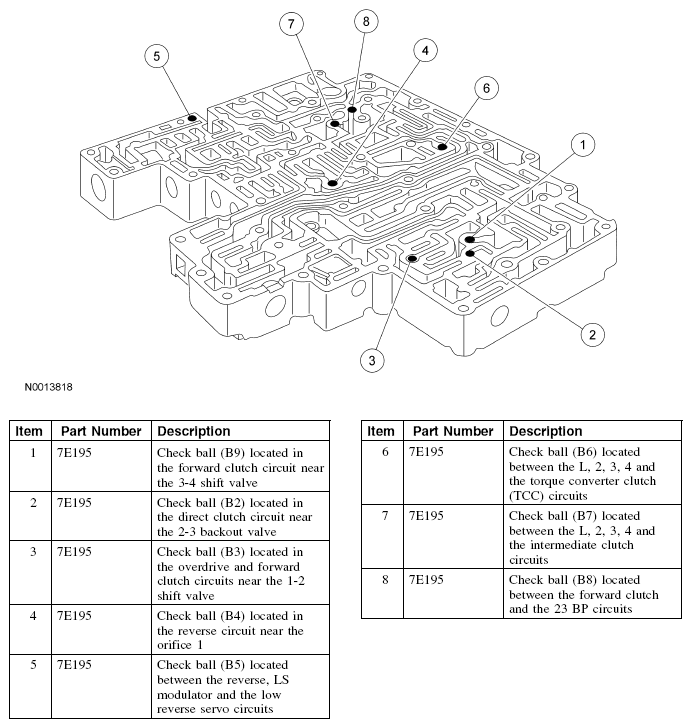

Fig 2: Exploded View Of Main Control Valve Body (2 Of 2)

Courtesy of FORD MOTOR CO.

Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
1. Remove the bolt.
2. Remove the shift solenoid.
3. Remove the TCC solenoid.

  Fig 3: Identifying TCC Solenoid Bolt
  Courtesy of FORD MOTOR CO.
Remove the bolts and the 2 reinforcement plates.

Fig 4: Locating Reinforcement Plates Bolts
Courtesy of FORD MOTOR CO.
Remove the separator plate and discard the gaskets.

Fig 5: Identifying Separator Plate And Gaskets
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the 8 coasting booster valve shuttle balls for assembly.
Remove the 8 coasting booster valve shuttle balls.

Fig 6: Identifying Coasting Booster Valve Shuttle Balls
Courtesy of FORD MOTOR CO.
Remove the converter drain back valve and solenoid pressure supply screen.

Fig 7: Locating Converter Drain Back Valve & Solenoid Pressure Supply Screen
Courtesy of FORD MOTOR CO.
Remove the main control valve body cover plate.
1. Remove the 13 bolts.
2. Remove the valve body cover plate and gasket.

  Fig 8: Identifying Valve Body Cover Plate And Gasket Bolts
