Main Components and Functions

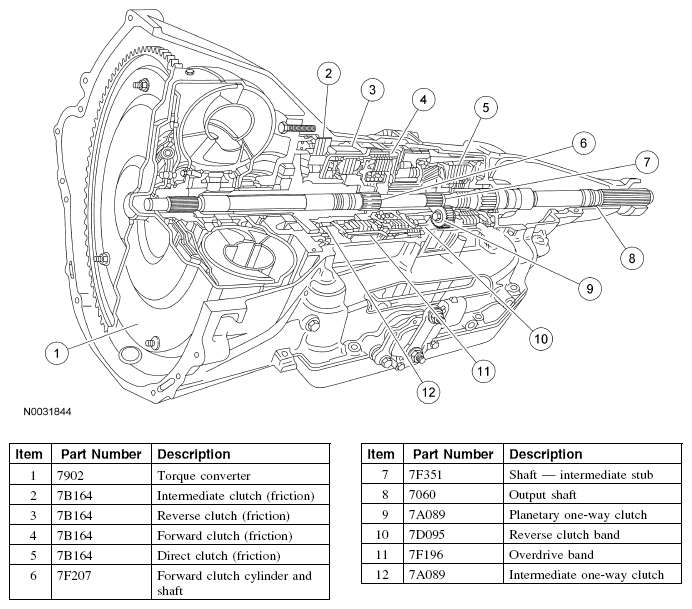

Fig 1: Sectional View Of Transmission Main Components
G04705903Courtesy of FORD MOTOR CO.
