Powertrain Control Module (PCM): Removal

NOTE: Any powertrain control module (PCM) replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.
  1. Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION .
  2. Release the clips and disconnect the 3 PCM electrical connectors.

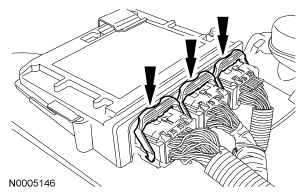

    Fig 1: Locating Clips And (PCM) Electrical Connectors
    G04705883
  3. Remove the bolt and the PCM.
