Valve Train Components - Exploded View

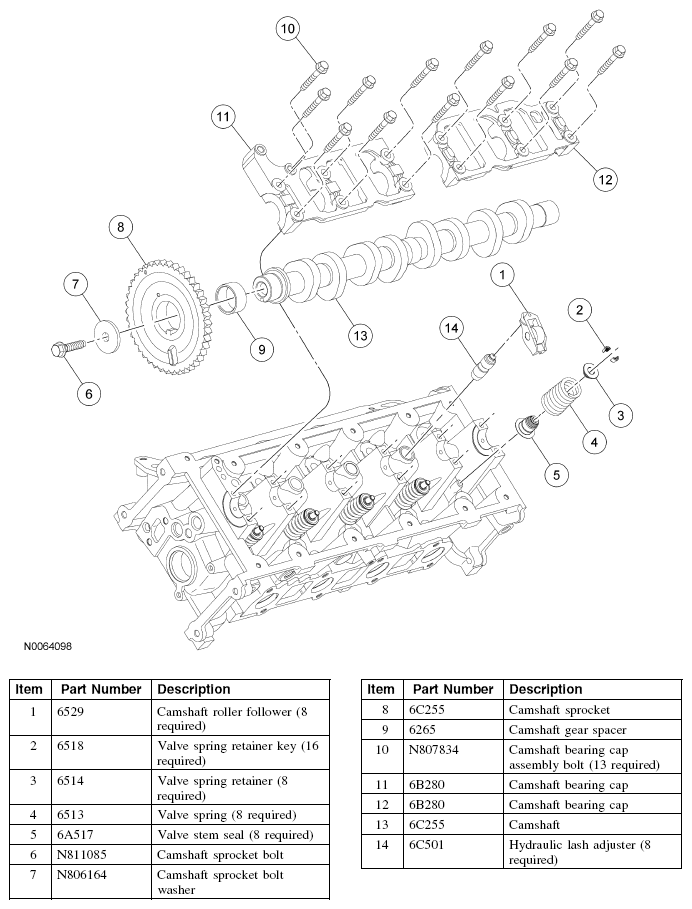

Fig 1: Exploded View Of Valve Train Components

G04705211

Courtesy of FORD MOTOR CO.

For additional information, refer toValve Train the in this article.
