Engine Front Cover: Notes

MATERIAL

Item Specification
Motorcraft Metal Surface Cleaner
ZC-21		 WSE-M5B392-A
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

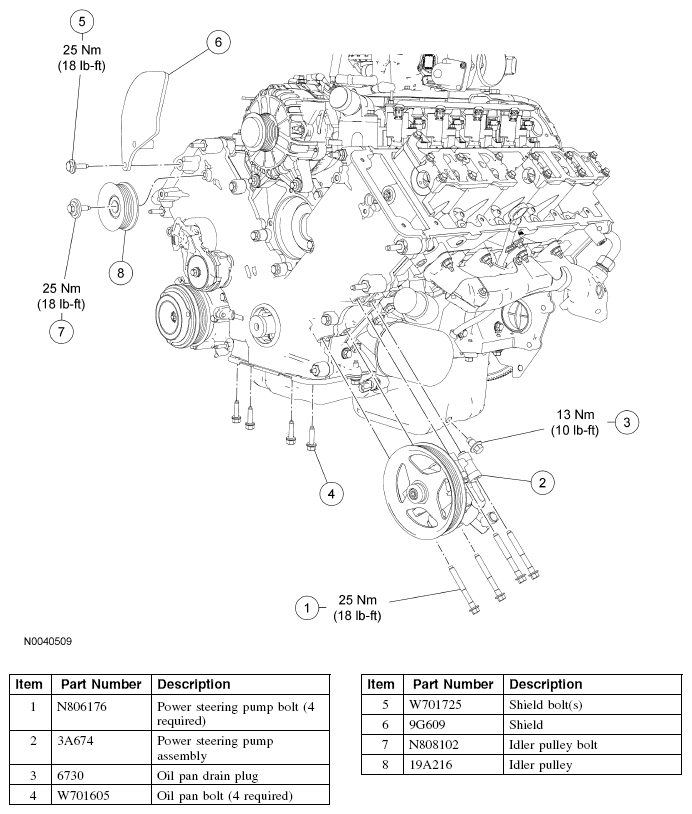

Fig 1: Engine Front Cover Replacement Components (1 Of 2) With Torque Specifications
G04705157Courtesy of FORD MOTOR CO.

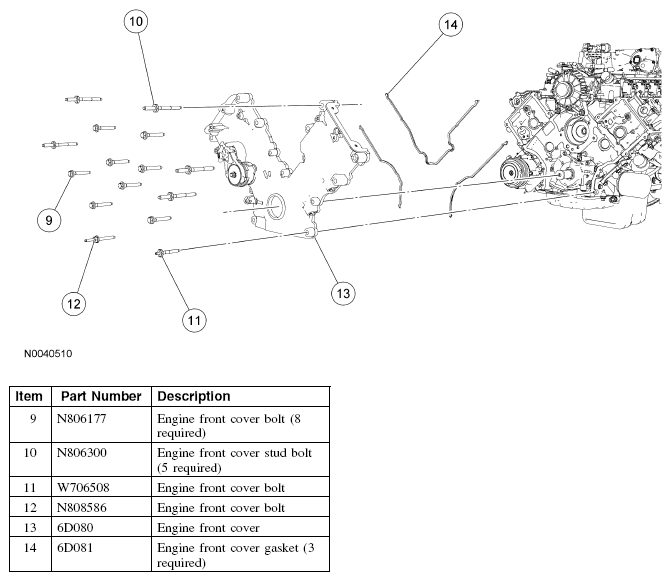

Fig 2: Identifying Engine Front Cover Components (2 Of 2)
G04705158Courtesy of FORD MOTOR CO.
