Engine Front Cover: Installation

NOTE: If the engine front cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or for 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
  1. Apply sealant along the cylinder head-to-block surface and the oil pan-to-cylinder block surface.

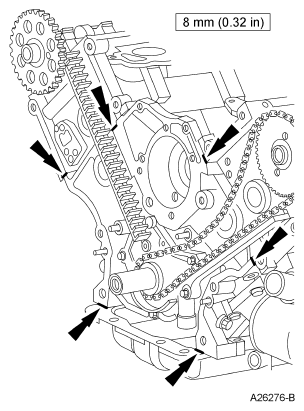

    Fig 1: Identifying Silicone Gasket And Sealant Application Points
    G04705161Courtesy of FORD MOTOR CO.
  2. Install the engine front cover on the front cover-to-cylinder block dowel and loosely install the bolts.
    Fig 2: Locating Engine Front Cover
    G03885297Courtesy of FORD MOTOR CO.
  3. Tighten the front cover fasteners in the sequence shown to 25 Nm (18 lb-ft).
    COMPONENTS DESCRIPTION CHART

    Item Part Number Description
    1 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    2 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    3 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    4 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    5 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    6 W706508 Stud, hex-head pilot, M8 x 1.25 x 50 - M6 x 1 x 10
    7 N808586 Stud, washer hex-head pilot, M8 x 1.25 - M6 x 1.0 x 86.35
    8 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    9 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    10 N806177 Bolt, hex flange head pilot, M8 x 1.25 x 53
    11 N806300 Stud, hex-shoulder pilot, M8 x 1.25 x 1.25 x 91.1
    12 N806300 Stud, hex-shoulder pilot, M8 x 1.25 x 1.25 x 91.1
    13 N806300 Stud, hex-shoulder pilot, M8 x 1.25 x 1.25 x 91.1
    14 N806300 Stud, hex-shoulder pilot, M8 x 1.25 x 1.25 x 91.1
    15 N806300 Stud, hex-shoulder pilot, M8 x 1.25 x 1.25 x 91.1

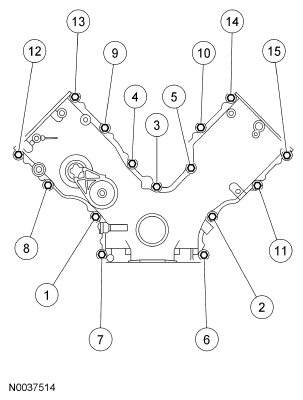

    Fig 3: Identifying Tightening Sequence For Front Cover Bolts
    G04705163Courtesy of FORD MOTOR CO.
  4. Install the idler pulley and the bolt.
    • Tighten to 25 Nm (18 lb-ft).
    NOTE: Limousines are equipped with 2 bolts retaining the shield.
  5. Install the shield and the bolt(s).
    • Tighten to 25 Nm (18 lb-ft).
  6. Loosely install the 4 front oil pan bolts.
    NOTE: Make sure to tighten the bolts in 2 stages.
  7. Tighten the 4 front oil pan bolts in 2 stages.
    • Stage 1: Tighten to 20 Nm (15 lb-ft).
    • Stage 2: Tighten an additional 60 degrees.
  8. Install the oil pan drain plug.
    • Tighten to 13 Nm (10 lb-ft).
    NOTE: The front lower hole in the power steering pump is not used.
  9. Position the power steering pump and install the 4 bolts.
    • Tighten to 25 Nm (18 lb-ft).
  10. Install a new crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT SEAL  in this article.
  11. Install the coolant pump. For additional information, refer to ENGINE COOLING .
  12. Install the valve covers. For additional information, refer to VALVE COVER - RH  or VALVE COVER - LH  in this article.
  13. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  14. Fill the engine with clean engine oil.
