Engine Mechanical: Mechanical: Engine: Assembly: Engine: Notes
SPECIAL TOOL(S)
| Guides, Connecting Rod 303-442 (T93P-6136-A) |
|
| Installer, Crankshaft Vibration Damper 303-102 (T74P-6316-B) |
|
| Installer, Front Cover Oil Seal 303-335 (T88T-6701-A) |
|
| Compressor, Piston Ring 303-D032 (D81L-6002-C) or equivalent |
|
| Holding Tool, Crankshaft 303-448 (T93P-6303-A) |
|
| Lifting Bracket Set, Engine 303-448 (T93P-6303-A) |
|
| Installer, Crankshaft Front Oil Seal 303-635 |
|
| Compressor, Valve Spring 303-567 (T97P-6565-AH) |
|
| Spacer, Valve Spring Compressor 303-382 (T91P-6565-AH) |
|
| Strap Wrench 303-D055 (D85L-6000-A) |
|
| Remover/Installer, Cylinder Head 303-572 (T97T-6000-A) |
|
| Installer, Crankshaft Rear Oil Seal 303-518 (T95P-6701-DH) |
|
| Installer, Crankshaft Rear Oil Seal 303-516 (T95P-6701-BH) |
|
| Installer, Crankshaft Rear Oil Slinger 303-517 (T95P-6701-CH) |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent | WSS-M2C930-A |
| Motorcraft Premium Gold Engine Coolant VC-7-A (in California, Oregon and New Mexico VC-7-B, in Canada CVC-7-A) or equivalent (yellow color) | WSS-M97B51-A1 |
| Motorcraft Metal Surface Cleaner ZC-21 |
WSE-M5B392-A |
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Hydraulic Chain Tensioner Retaining Clip 1L3Z-6P250-AA |
- |

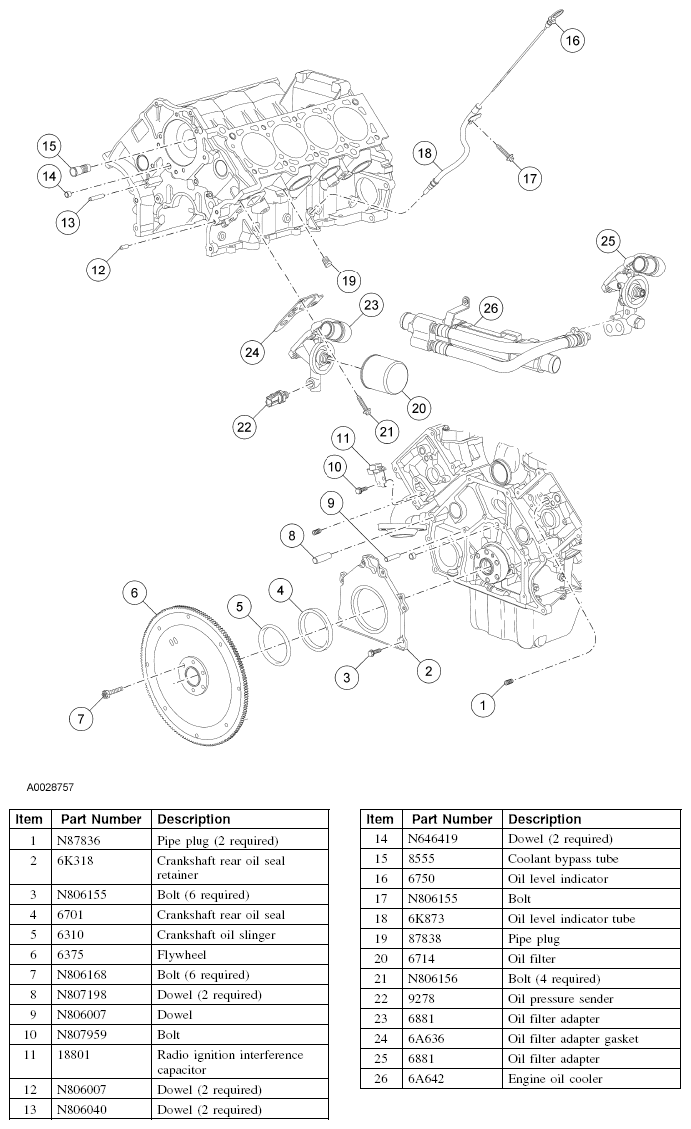

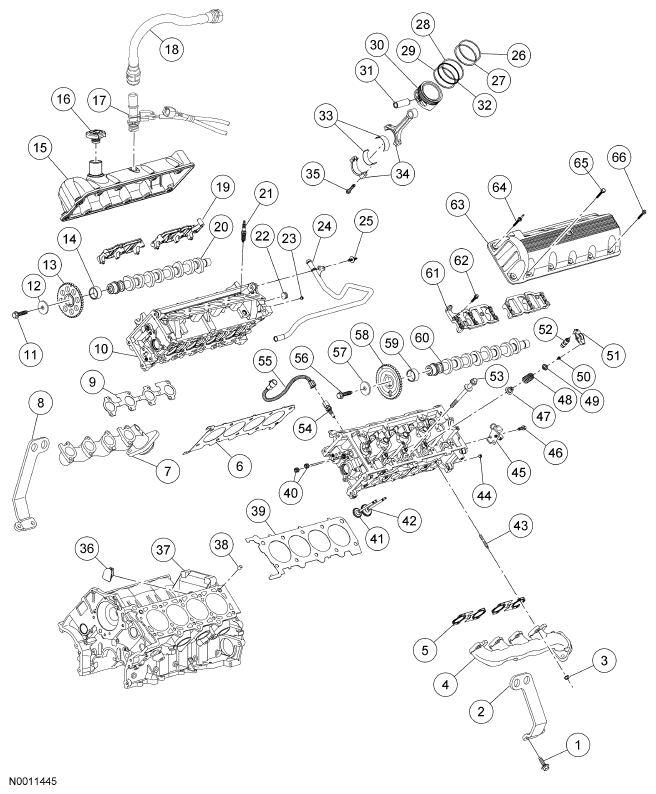

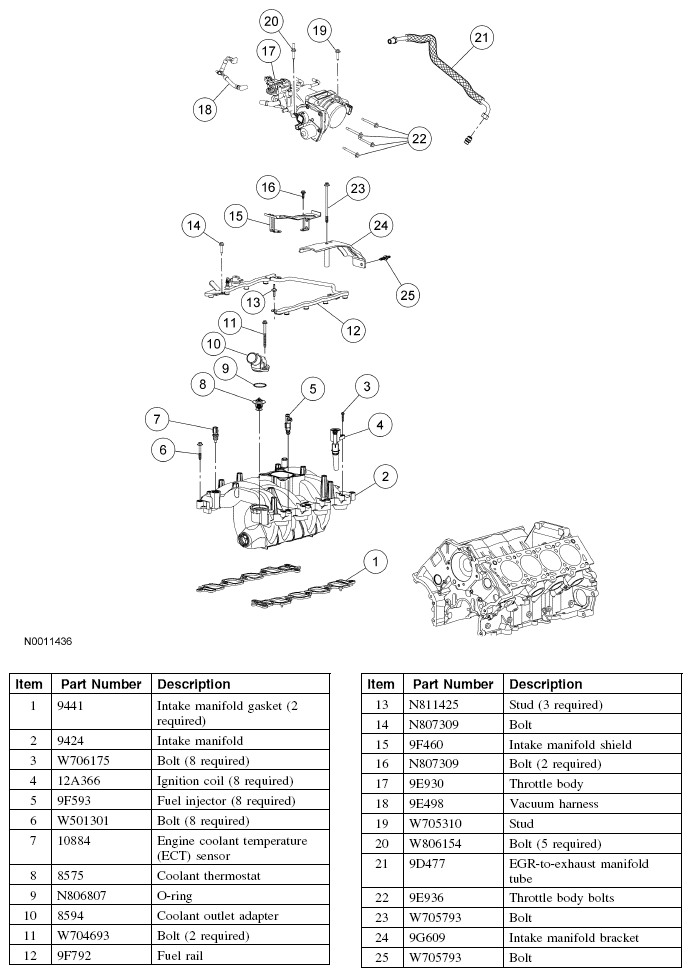

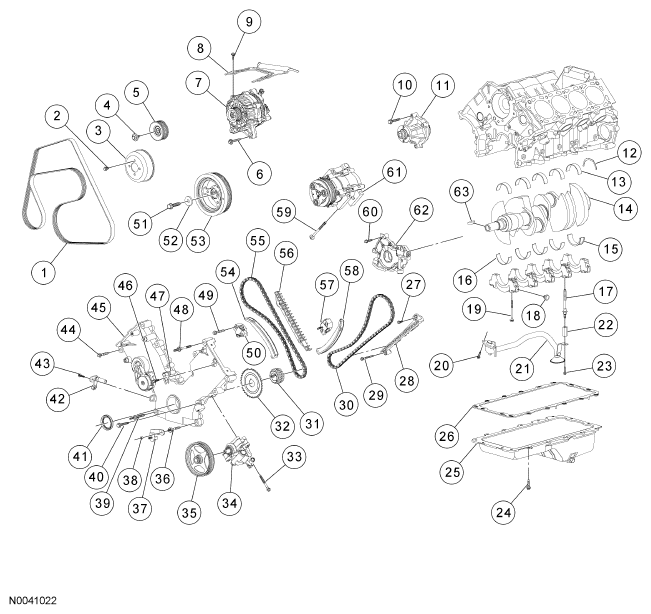

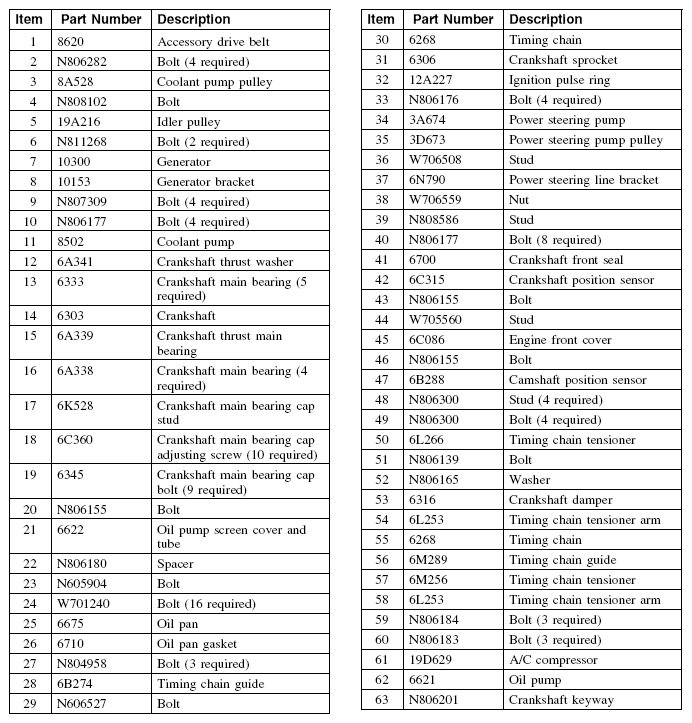

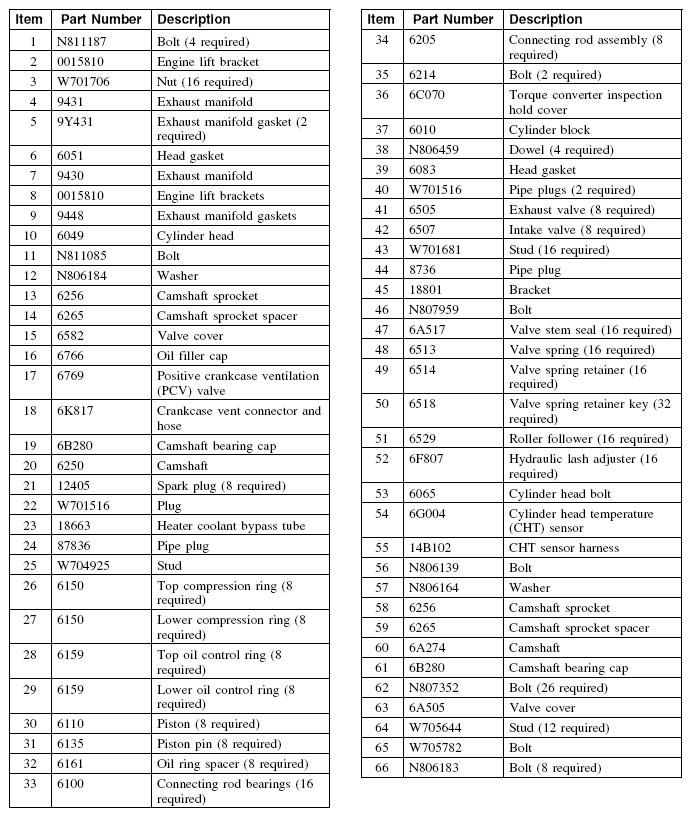

Engine Component View
