Exhaust Manifold - RH: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Engine Support Bar, Heavy Duty 303-F070
Courtesy of FORD MOTOR CO.	Support Hook 303-F071
Courtesy of FORD MOTOR CO.	Engine Support Bracket 303-639

MATERIALS

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-

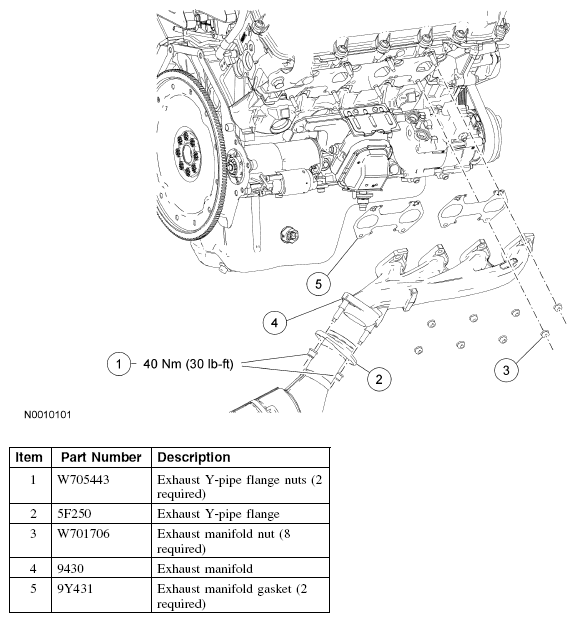

Fig 1: Locations Of Exhaust Manifold Replacement Components -- RH With Torque Specifications

Courtesy of FORD MOTOR CO.
