Exhaust Manifold - LH: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Engine Support Bar, Heavy Duty 303-F070
Courtesy of FORD MOTOR CO.	Support Hook 303-F071
Courtesy of FORD MOTOR CO.	Engine Support Bracket 303-639

MATERIALS

Item	Specification
Motorcraft Metal Surface Prep ZC31	-

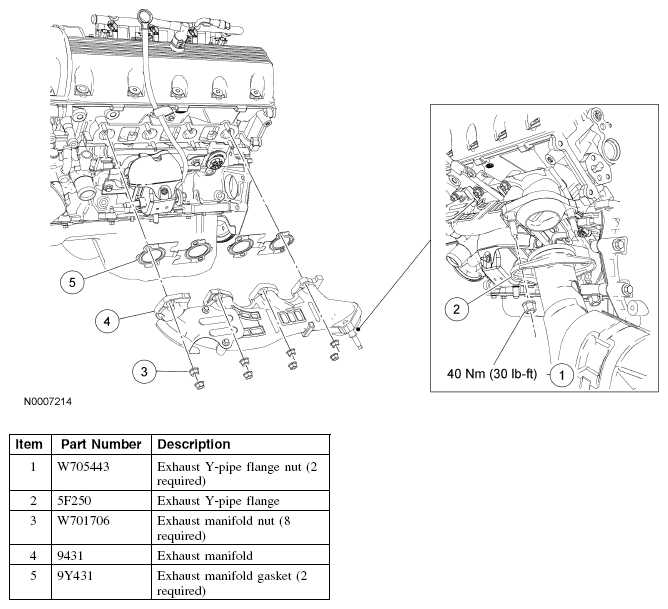

Fig 1: Location Of Exhaust Manifold Replacement Components -- LH With Torque Specifications

Courtesy of FORD MOTOR CO.
