Overdrive Clutch Assembly: Assembly

Install the 3 square cut seals and the roller bearing.

Fig 1: Locating Square Cut Seals & Roller Bearing
Courtesy of FORD MOTOR CO.
If removed, install the overdrive clutch thrust washer.

Fig 2: Locating Overdrive Clutch Thrust Washer
Courtesy of FORD MOTOR CO.

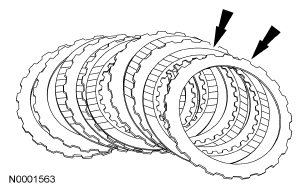

Install the overdrive clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates, and ending with the pressure plate on the top.

Fig 3: Locating Overdrive Clutch Plates
Courtesy of FORD MOTOR CO.
Install the overdrive clutch pack snap ring.

Fig 4: Locating Overdrive Clutch Pack Snap Ring
Courtesy of FORD MOTOR CO.
Install the roller bearing.

Fig 5: Locating Roller Bearing
Courtesy of FORD MOTOR CO.
