Low/Reverse Clutch Assembly: Notes

ITEM SPECIFICATION

Item Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP MERCON® SP

Low/Reverse Clutch Assembly (D Clutch)

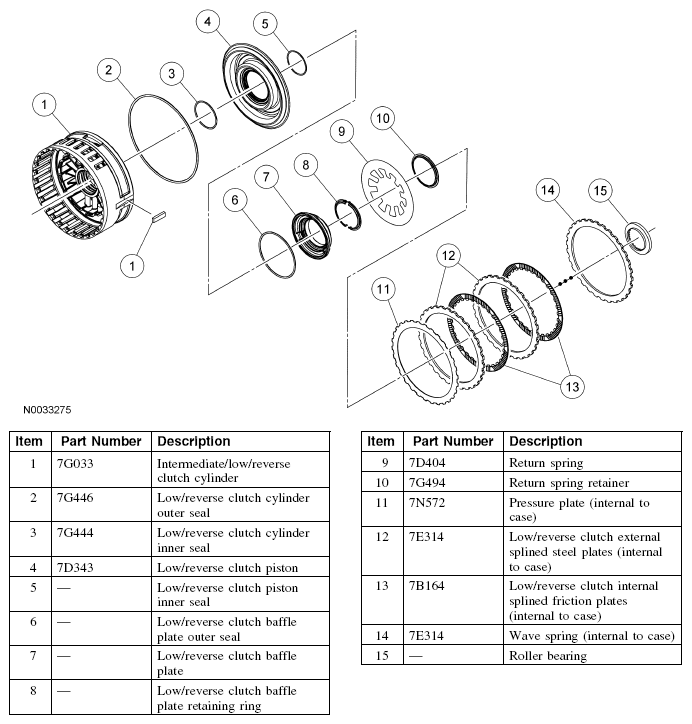

Fig 1: Identifying Low/Reverse Clutch Assembly Components (D Clutch)
G04627927Courtesy of FORD MOTOR CO.
