Forward Clutch Assembly: Disassembly
- Remove the sun gear from the forward clutch assembly.

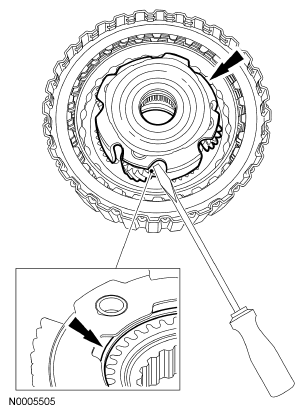

- With a small screwdriver inserted into the sun gear push on the retaining ring in 3 places, while lifting up on the sun gear to remove.
- Remove the forward clutch pack snap ring.
- Remove the forward clutch plates, steel and friction. Inspect the steel and friction plates for damage. If damage is indicated, a new forward clutch assembly will be required.
- If no damage is indicated the forward clutch can be re-assembled.
NOTE:
Inspect the forward clutch drum, friction plates and steel plates for damage. No new components are installed at this time. If new components are required, a new forward clutch assembly is required.
