Selector Lever Cable and Bracket - Column Shift: Notes

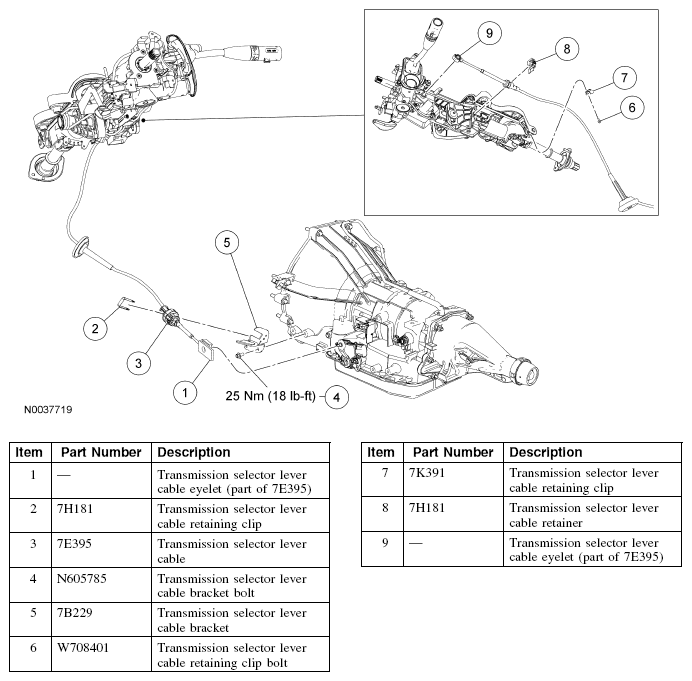

Fig 1: Selector Lever Cable & Bracket Replacement Components -- Column Shift With Torque Specifications

G04628878

Courtesy of FORD MOTOR CO.
