Brake Shift Interlock Actuator - Column Shift: Notes

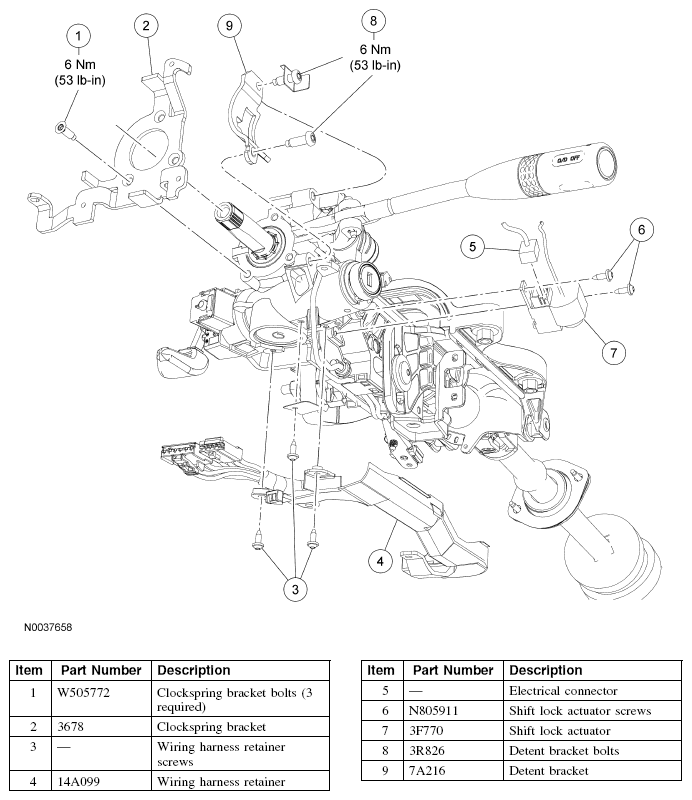

Fig 1: Brake Shift Interlock Actuator Replacement Components -- Column Shift With Torque Specifications

G04628871

Courtesy of FORD MOTOR CO.
