Power Steering Pump: Notes

SPECIAL TOOL(S) SPECIFICATION

G04626727Courtesy of FORD MOTOR CO.
Installer Set, Teflon® Seal
211-D207 (D90P-3517-A) or equivalent
MATERIAL SPECIFICATION

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid
XT-2-QDX (US);
XT-2-LM12 (Canada)
MERCON®

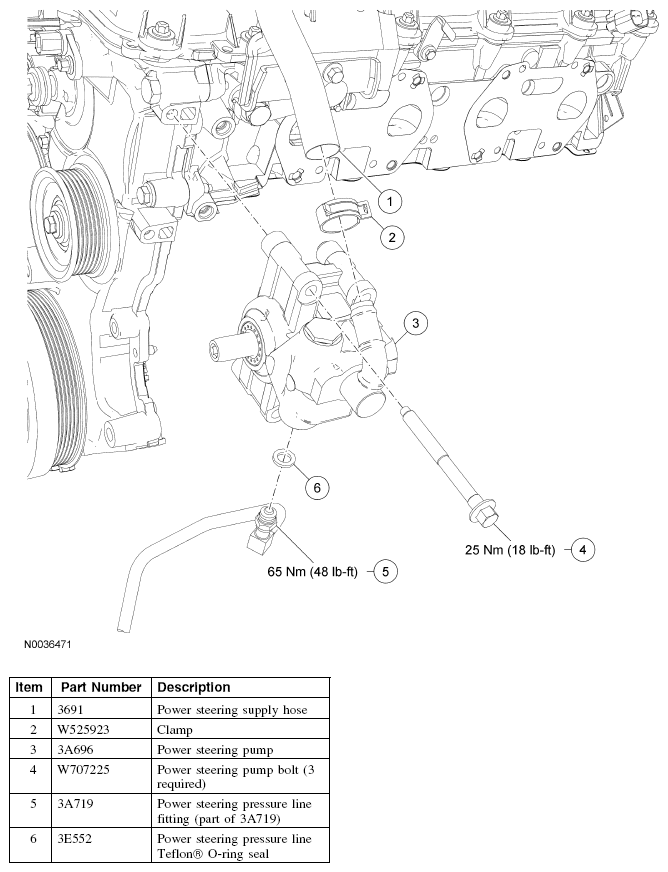

Fig 1: Power Steering Pump Replacement Components With Torque Specifications
G04626728Courtesy of FORD MOTOR CO.
