Climate Control System: Notes

Refer to COMPONENT TESTING for schematic and connector information.

Courtesy of FORD MOTOR CO.	Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent scan tool
Courtesy of FORD MOTOR CO.	R-134a Manifold Gauge Set 176-R032A or equivalent
Courtesy of FORD MOTOR CO.	Connector, Refrigerant Pressure Line 412-093 (T94P-19623-E)
Courtesy of FORD MOTOR CO.	Set, A/C Fittings 412-DS028 (D93L-19703-B) or equivalent
Courtesy of FORD MOTOR CO.	Refrigerant Leak Detector 216-00001 or equivalent
Courtesy of FORD MOTOR CO.	Pressure Tester 014-R1072 or equivalent
Courtesy of FORD MOTOR CO.	Fluke 77111 Automotive Meter 105-R0056 or equivalent

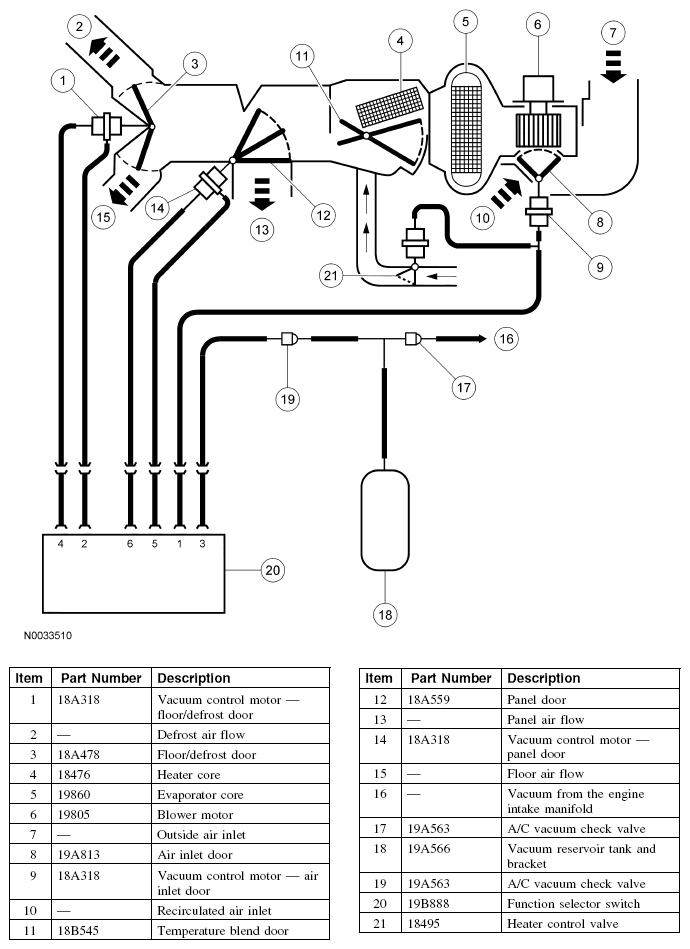

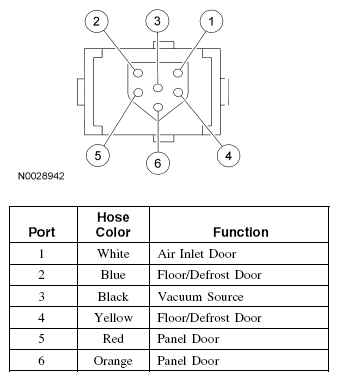

Switch Port	Color	Function	Function Selector Switch Position
			MAX A/C	PANEL	PNL/FLR	OFF	FLOOR	FLR/DEF	DEF
1	White	Recirc/Fresh	V	NV	NV	V	NV	NV	NV
2	Blue	Floor/Defrost	NV	V	V	NV	V	V	NV
3	Black	Vacuum Source	V	V	V	V	V	V	V
4	Yellow	Floor/Defrost	NV	V	V	NV	V	NV	NV
5	Red	Panel	V	V	V	NV	NV	NV	NV
6	Orange	Panel	V	V	NV	NV	NV	NV	NV
V = Vacuum
NV = No Vacuum

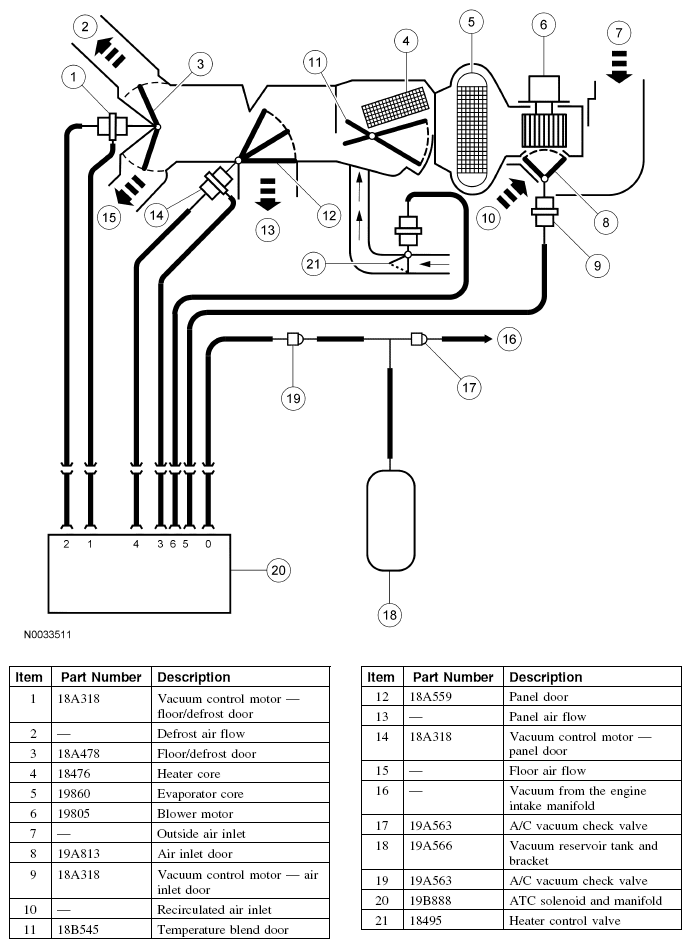

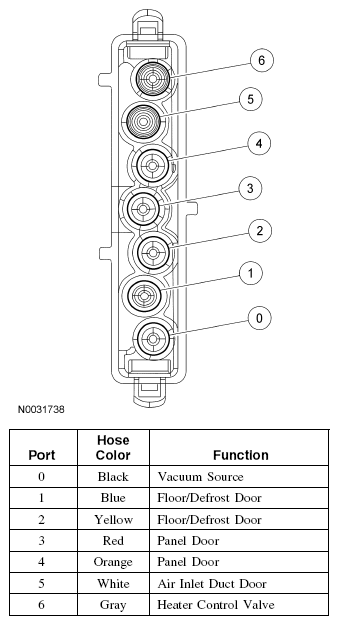

Port	Color	Function	Manual Override Buttons
			OFF	PANEL	PNL/FLR	FLR	FLR/DEF	DEF
0	Black	Vacuum Source	V	V	V	V	V	V
1	Blue	Floor/Defrost	NV	V	V	V	V	NV
2	Yellow	Floor/Defrost	NV	V	V	V	NV	NV
3	Red	Panel	NV	V	V	NV	NV	NV
4	Orange	Panel	NV	V	NV	NV	NV	NV
5	White	Air Inlet(1)	V	NV/V	NV/V	NV/V	NV/V	NV/V
6	Gray	Heater Control Valve(2)	V	-	-	-	-	-
V = Vacuum
NV = No Vacuum
(1) The EATC system may be manually set to enable or disable the recirculation of cabin air by pressing the RECIRCULATION manual override button in all manual override modes except DEFROST. (2) The automatic temperature control solenoid and manifold will supply vacuum and close the heater control valve depending on the EATC module settings and ambient conditions in any setting except OFF.
