Climate Control Assembly - Front Auxiliary

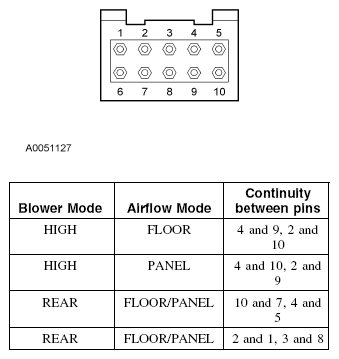

Fig 1: Climate Control Assembly - Front Auxiliary Connector Identification
G04629372Courtesy of FORD MOTOR CO.
TERMINALS RESISTANCE TABLE

Resistance between pins Resistance Range (approx.)
3 and 9 50 ohms (WARM)-3,000 ohms (COOL)
3 and 10 50 ohms (COOL)-3,000 ohms (WARM)
