Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the driver side air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

Expedition

Remove the speed control switch.
1. Disconnect the electrical connector.
2. Remove the screws.

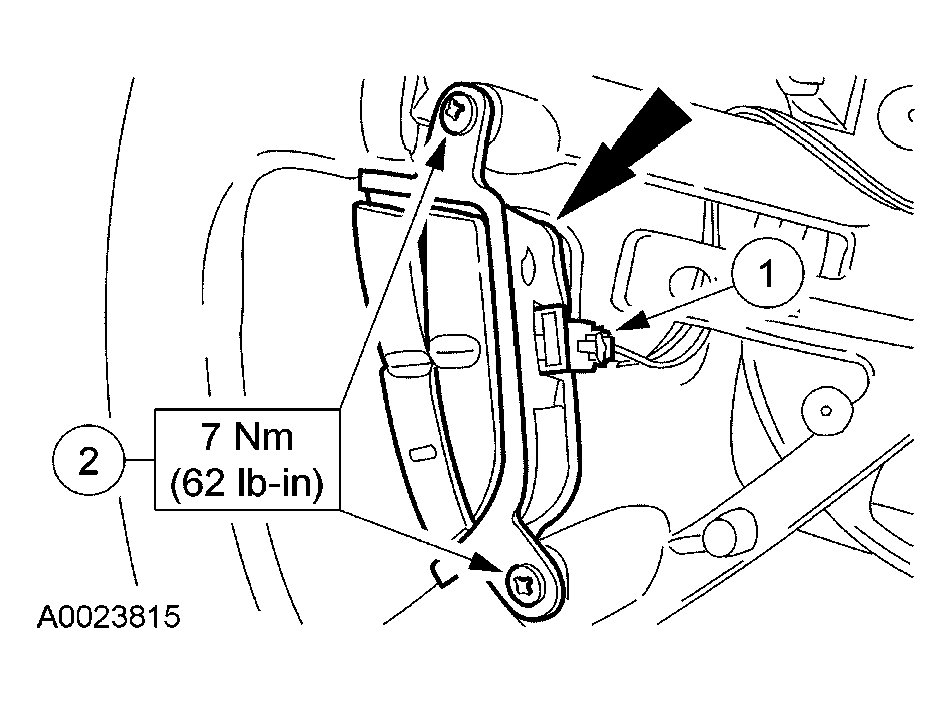

  Fig 1: Removing Speed Control Switch
  Courtesy of FORD MOTOR CO.

Navigator

Remove the horn switch.
1. Disconnect the electrical connector.
2. Remove the bolts.

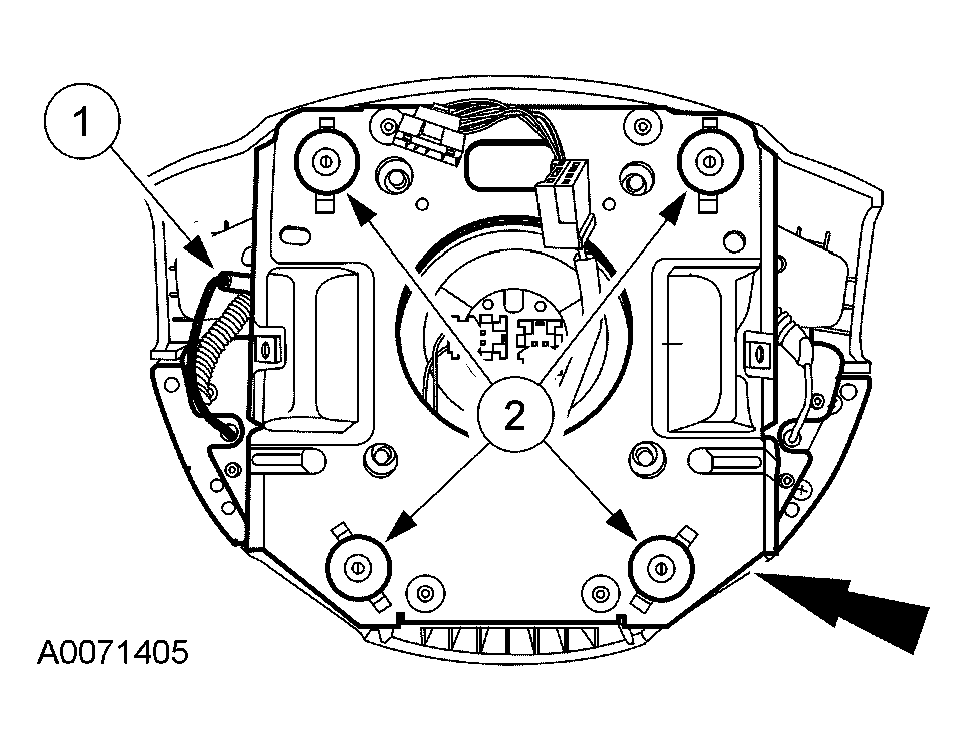

  Fig 2: Removing Horn Switch
  Courtesy of FORD MOTOR CO.
Remove the speed control switch.
1. Disconnect the wiring harness locators.
2. Remove the screws.

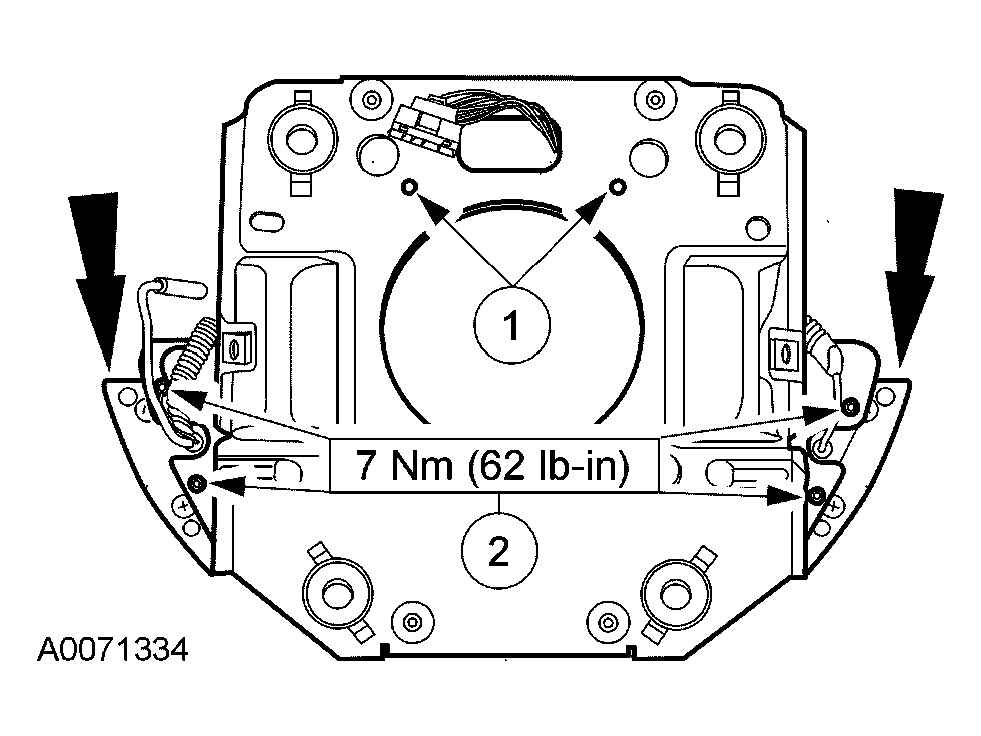

  Fig 3: Removing Speed Control Switch (Navigator)
  Courtesy of FORD MOTOR CO.

All vehicles

To install, reverse the removal procedure.
