Exhaust System - Exploded View

NOTE:

Vehicle body removed for clarity.
Exhaust system may vary by vehicle.

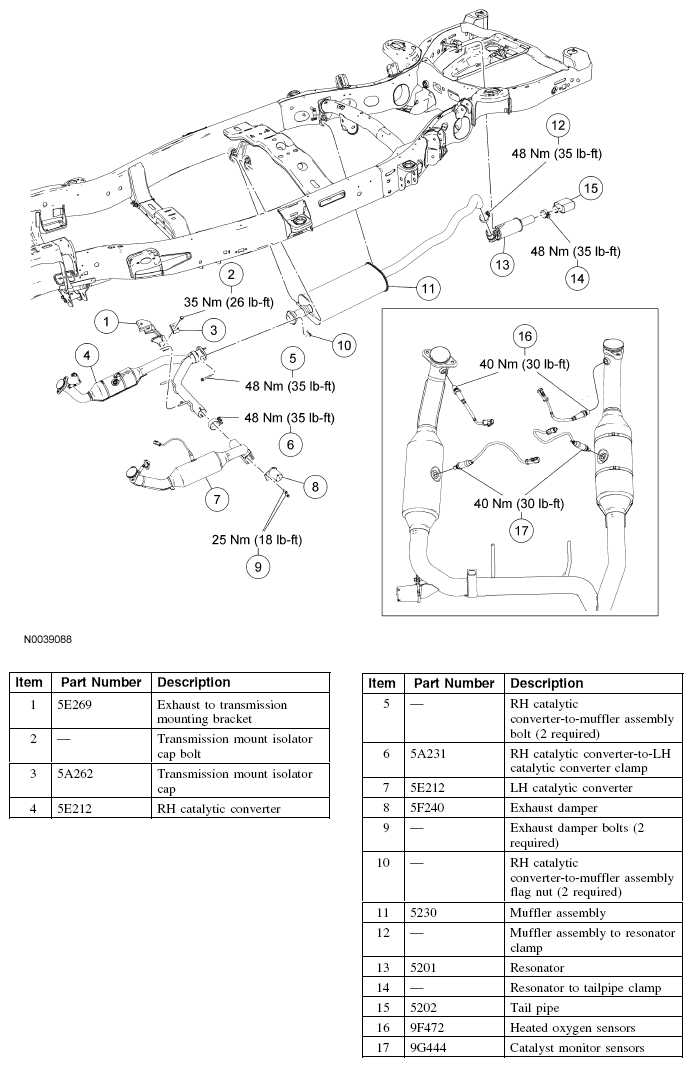

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications

G04629055

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
