Wheel Speed Sensor - Rear: Notes

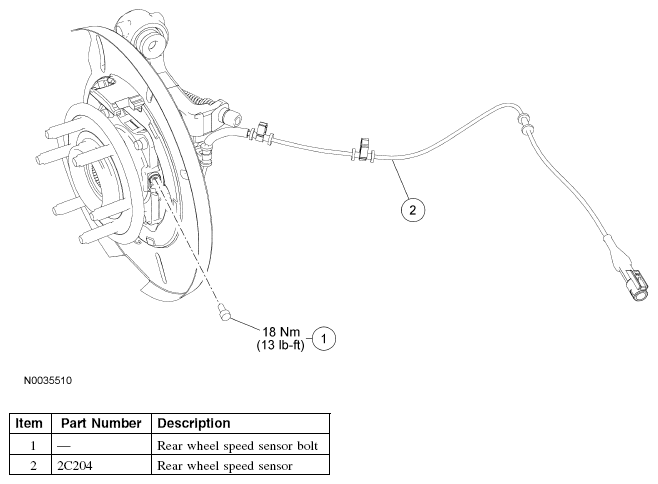

Fig 1: Rear Wheel Speed Sensor Replacement Components With Torque Specifications

G04626702

Courtesy of FORD MOTOR CO.
