Hydraulic Control Unit (HCU): Notes

MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A or WSS-M6C62-A

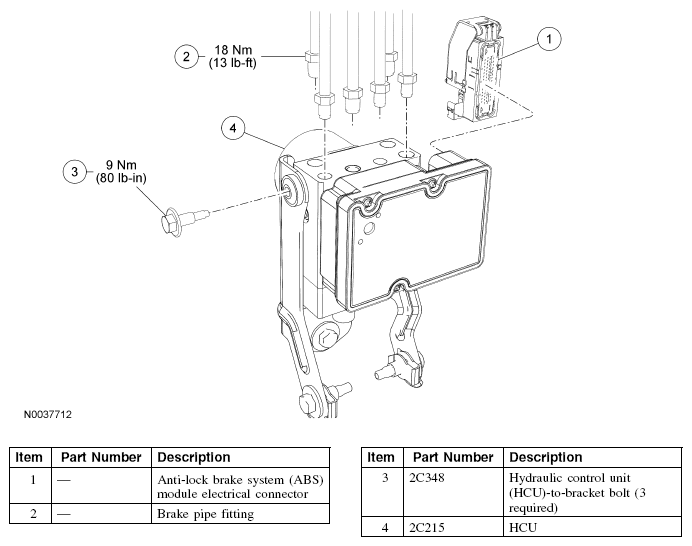

Fig 1: Hydraulic Control Unit Components With Torque Specifications
G04626697Courtesy of FORD MOTOR CO.
