Removal and Installation

All vehicles

Remove the driver air bag module. For additional information, refer to REMOVAL .

Expedition

Remove the 2 screws and the speed control switch.
- Disconnect the electrical connector.

Navigator

Remove the horn switch.
1. Disconnect the electrical connector.
2. Remove the 4 bolts.

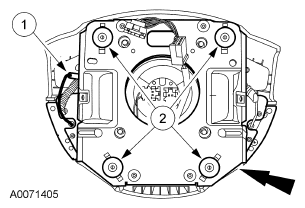

  Fig 1: Locating Electrical Connector Bolts
  Courtesy of FORD MOTOR CO.
Remove the speed control switch.
1. Disconnect the wiring harness locators.
2. Remove the 4 screws.
  - To install, tighten to 7 N.m (62 lb-in).

    Fig 2: Locating Wiring Harness Locators Screws
    Courtesy of FORD MOTOR CO.

All vehicles

To install, reverse the removal procedure.
