Restraints Control Module (RCM): Notes

Vehicles with a center console

NOTE: Seats removed for clarity.

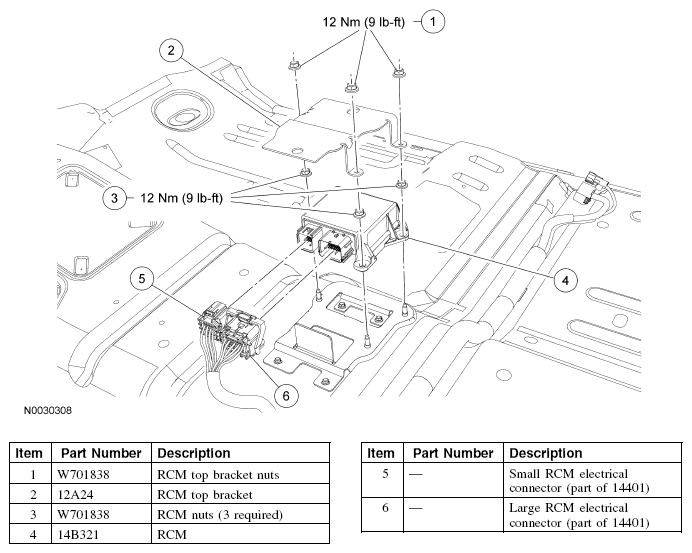

Fig 1: Exploded View Of Restraints Control Module Components (RCM) With Torque Specifications - (Vehicles With Center Console)

Courtesy of FORD MOTOR CO.

Vehicles with 60/40 front bench seat

NOTE: Seats and carpet removed for clarity.

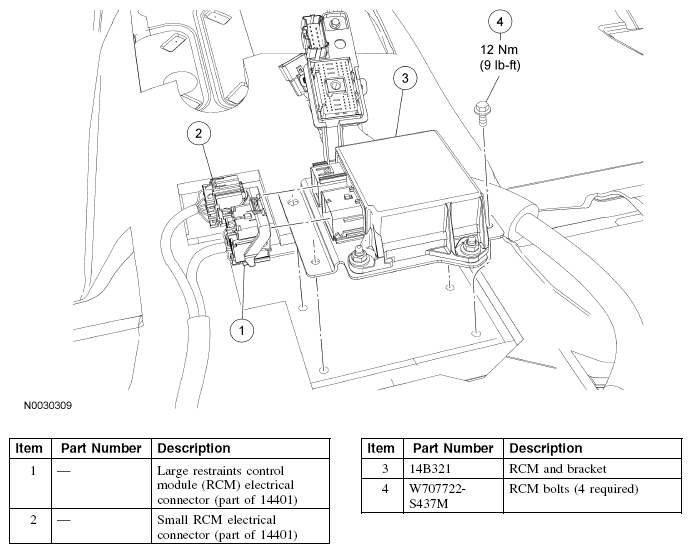

Fig 2: Exploded View Of Restraints Control Module Components (RCM) With Torque Specifications - (Vehicles With 60/40 Front Bench Seat)

Courtesy of FORD MOTOR CO.
