Multifunction Switch, Turn Portion: Schematic

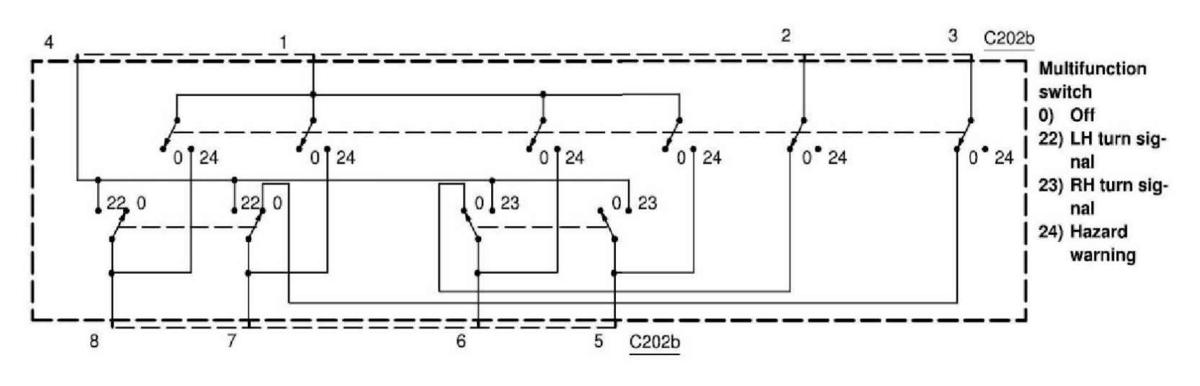

Fig 1: Multifunction Switch, Turn Portion - Schematic Diagram

G04596327

Courtesy of FORD MOTOR CO.
