Instrument Panel - Exploded View
Instrument Panel - Exploded View

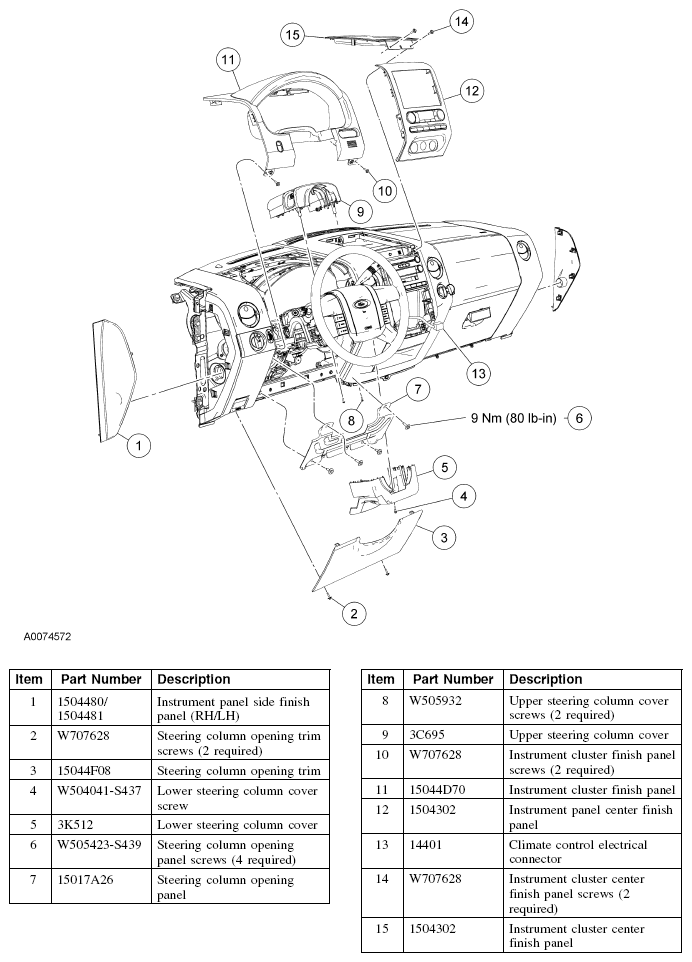

Fig 1: Exploded View Of Instrument Panel With Torque Specification (1 Of 4)
Courtesy of FORD MOTOR CO.

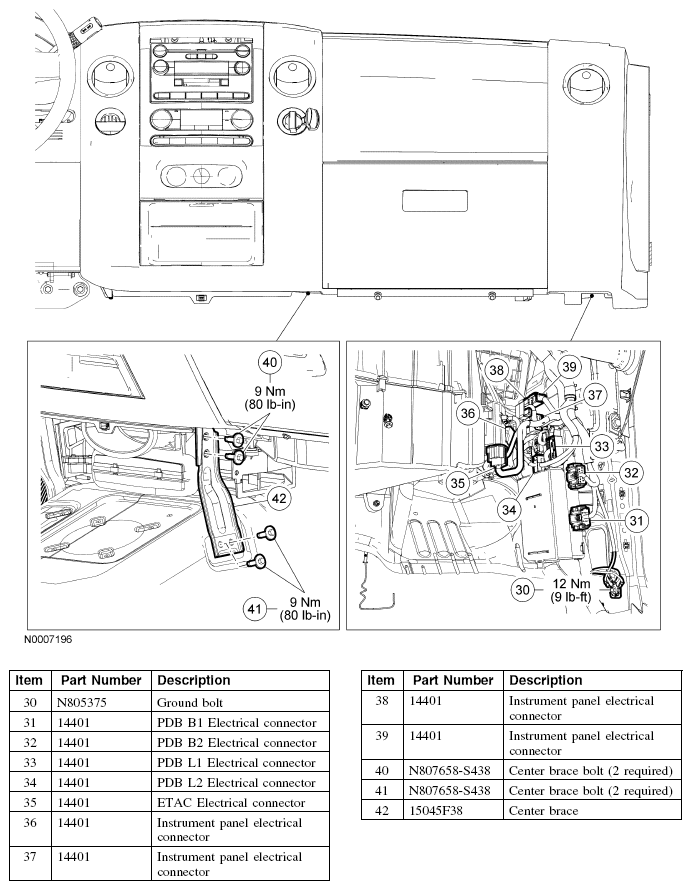

Fig 2: Exploded View Of Instrument Panel With Torque Specification (2 Of 4)
Courtesy of FORD MOTOR CO.

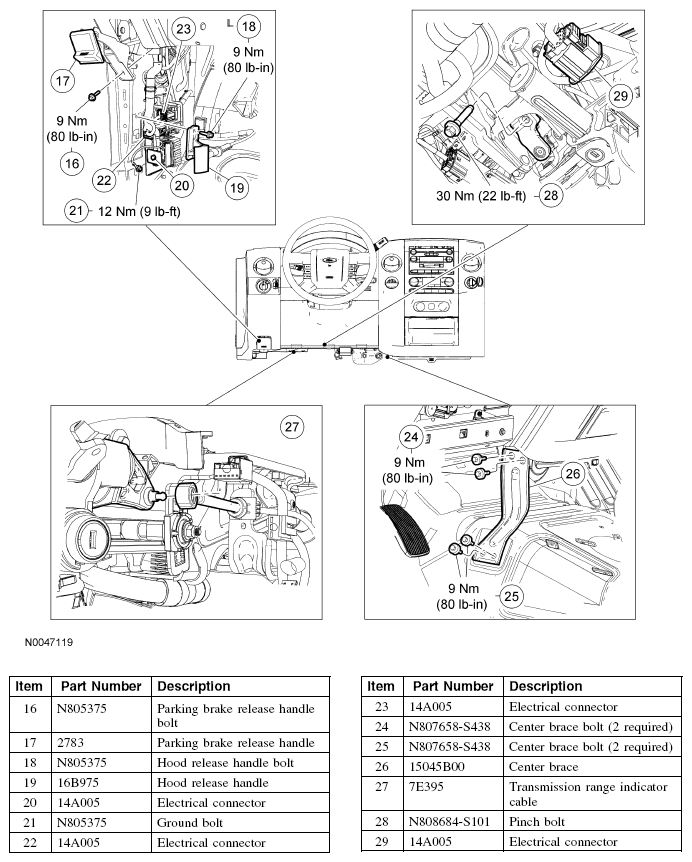

Fig 3: Exploded View Of Instrument Panel With Torque Specification (3 Of 4)
Courtesy of FORD MOTOR CO.

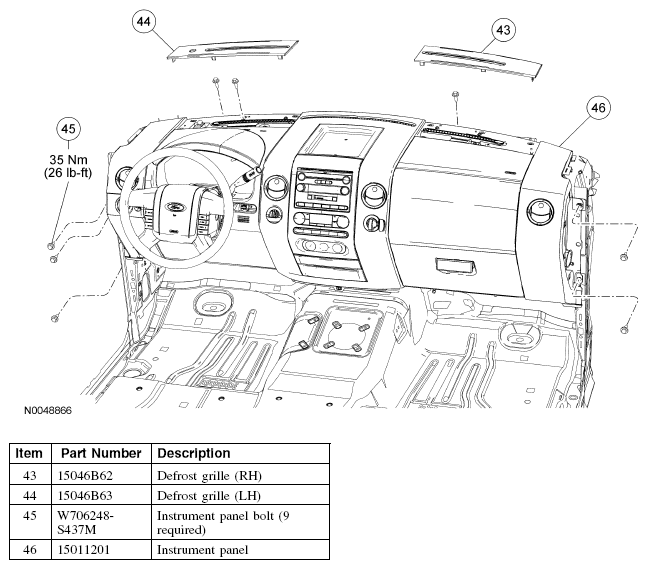

Fig 4: Exploded View Of Instrument Panel With Torque Specification (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
