Lincoln
>>
2006
>>
Mark LT RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Cluster System
>>
Removal And Installation
>>
Instrument Cluster
>>
Notes
Instrument Cluster: Notes

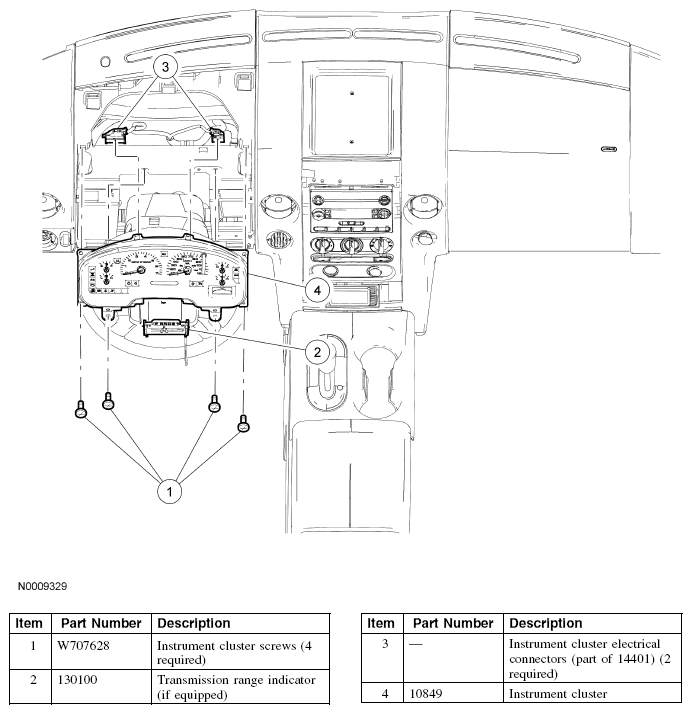

Fig 1: Identifying Instrument Cluster Remove/Install Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
