Passenger Air Bag Module: Notes

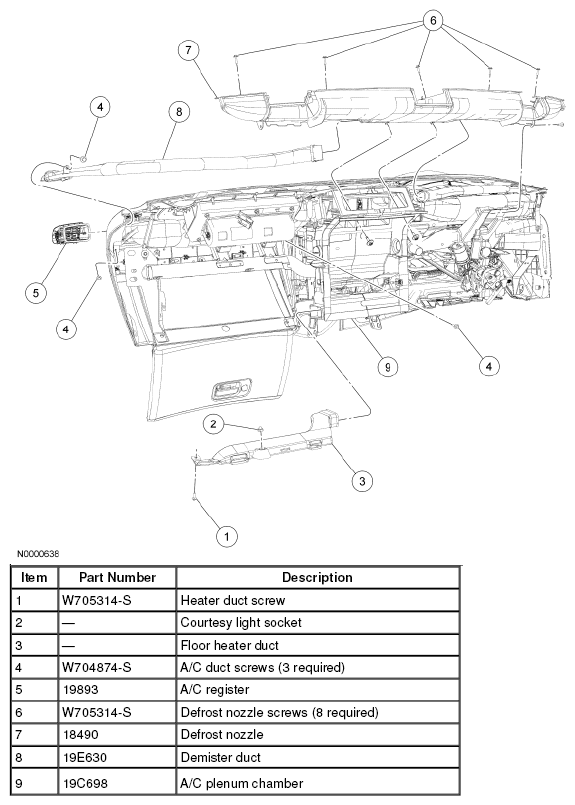

Fig 1: Identifying Passenger Air Bag Module Components (1 Of 2)
G04693713Courtesy of FORD MOTOR CO.

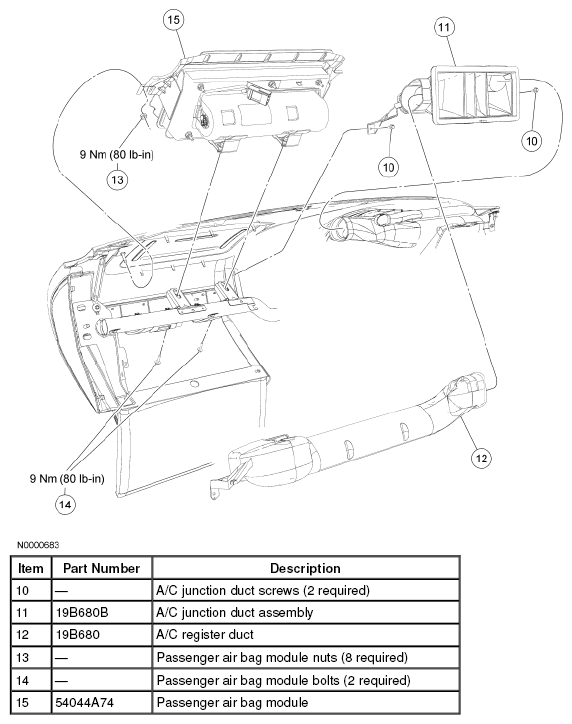

Fig 2: Identifying Passenger Air Bag Module Components (2 Of 2)
G04693714Courtesy of FORD MOTOR CO.
