Removal And Installation: Clockspring: Notes

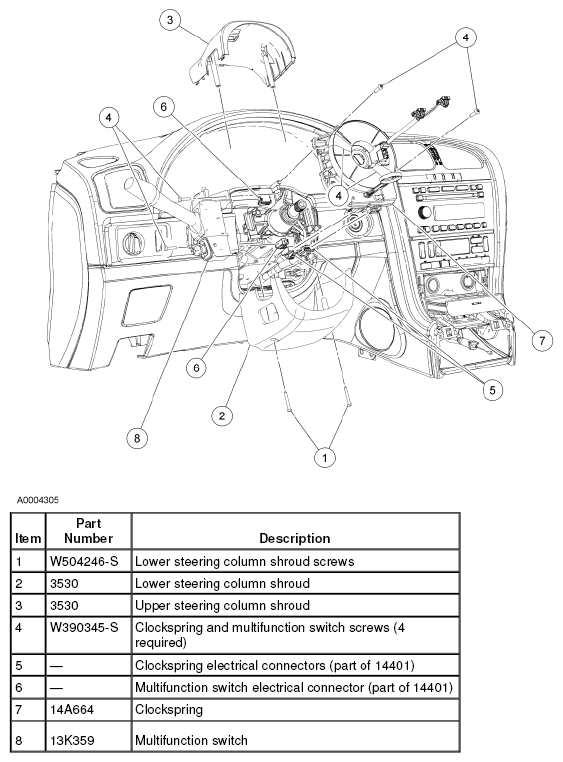

Fig 1: Identifying Clockspring Components

G04693705

Courtesy of FORD MOTOR CO.
