Receiver Drier
>>
Notes
Receiver Drier: Notes
MATERIAL SPECIFICATION
Item
Specification
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D
WSH-M1C231-B

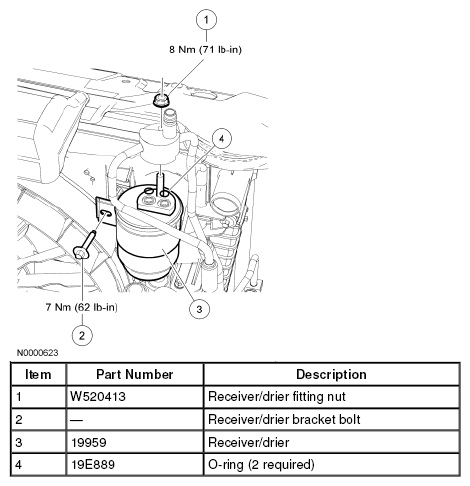

Fig 1: Receiver Drier Replacement Components With Torque Specifications
