Removal and Installation
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

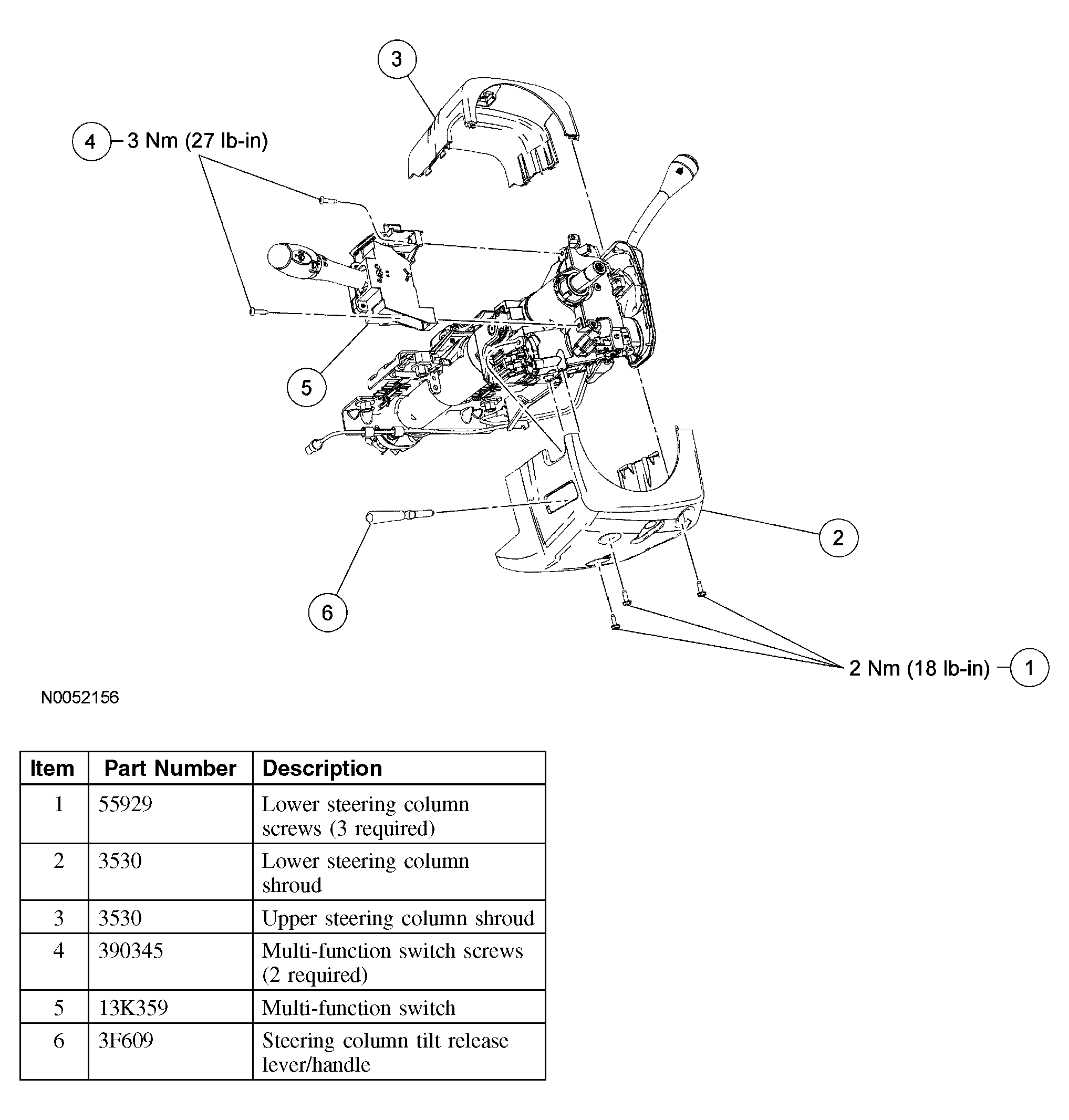

Steering wheel removed for clarity.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the tilt release lever/handle.
- Remove the 3 screws and the upper and lower steering column shrouds.
- To install, tighten to 2 Nm (18 lb-in).
- Disconnect the 3 multi-function switch electrical connectors.
- Remove the 2 screws and the multi-function switch.
- To install, tighten to 3 Nm (27 lb-in).
- To install, reverse the removal procedure.
NOTE:
Release the upper steering column shroud by pressing the sides inward.
