Steering Column Switches: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Refer to SYSTEM WIRING DIAGRAMS - CROWN VICTORIA or SYSTEM WIRING DIAGRAMS - GRAND MARQUIS for schematic and connector information.
Refer to COMPONENT TESTING .
SPECIAL TOOL(S)
| Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool |
|
| 73III Automotive Meter 105-R0057 or equivalent |
|

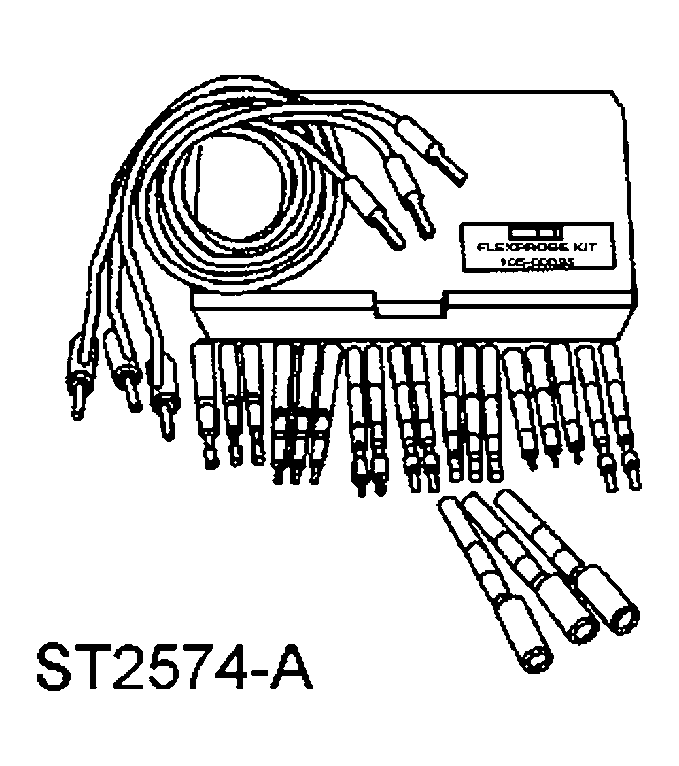

| Flex Probe Kit 105-R025B |
