Bumper - Exploded View, Front: MKZ
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

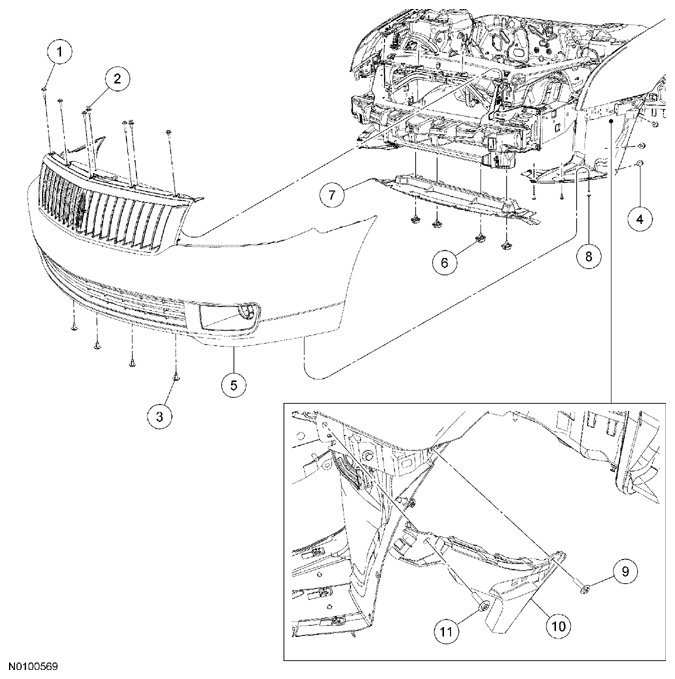

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W711676 | Upper radiator grille bolt (2 required) |
| 2 | N807389 | Upper radiator grille pin-type retainer (2 required) |
| 3 | W709976 | Lower air deflector screw (4 required) |
| 4 | N807389 | Fender splash shield pin-type retainer (4 required) |
| 5 | 17C831 | Front bumper cover |
| 6 | N807389 | Lower air deflector pin-type retainer (4 required) |
| 7 | 8327 | Lower air deflector |
| 8 | W709976 | Fender splash shield screw (6 required) |
| 9 | N808650 | Bumper cover mounting bracket rear bolt |
| 10 | 17D958 LH/17D959 RH | Bumper cover mounting bracket |
- For additional information, refer to the appropriate procedures in this service information.
