Condenser to Evaporator Line: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

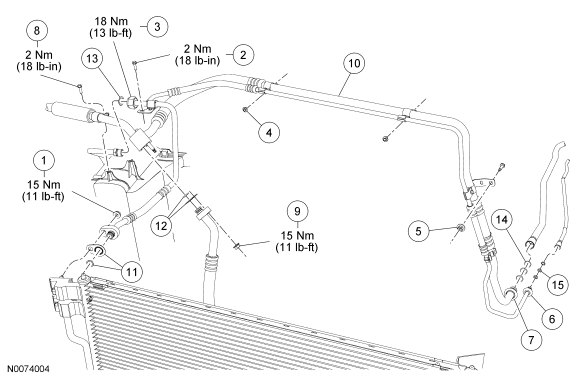

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser outlet fitting nut |
| 2 | 390865-S2 | Evaporator inlet fitting bracket screw |
| 3 | - | Evaporator inlet fitting (part of 19835 without auxiliary A/C) (part of 19E558 with auxiliary A/C) |
| 4 | W710604 | Condenser-to-evaporator line bracket screw (2 required) |
| 5 | N621906 | Condenser-to-evaporator line bracket nut |
| 6 | - | Auxiliary evaporator inlet line fitting (part of 19E558) |
| 7 | - | Auxiliary evaporator outlet line fitting (part of 19E558) |
| 8 | 390865-S2 | Suction accumulator outlet line bracket screw |
| 9 | W520413 | Compressor suction line fitting nut |
| 10 | 19835 | Condenser-to-evaporator line (vehicles without auxiliary A/C) |
| 10 | 19E558 | Condenser-to-evaporator/ auxiliary evaporator suction line assembly (vehicles with auxiliary A/C) |
| 11 | 19B596 | O-ring seal and gasket seal kit |
| 12 | 19B596 | O-ring seal and gasket seal kit |
| 13 | 19E889 | O-ring seal |
| 14 | 19E889 | O-ring seal (3 required) |
| 15 | 19E889 | O-ring seal (3 required) |

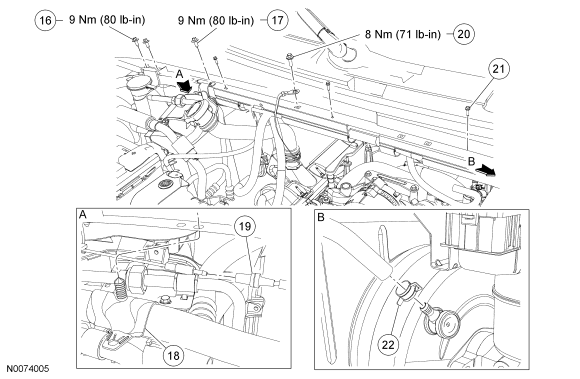

| Item | Part Number | Description |
|---|---|---|
| 16 | N800369 | Washer reservoir filler tube bolt (2 required) |
| 17 | N800369 | Oil filler tube bolt |
| 18 | - | Wire harness pin-type retainer (part of 12A581) |
| 19 | - | Vacuum supply line connector (part of 9E498) |
| 20 | W705661 | Cowl ground strap bolt |
| 21 | N610938 | Wire harness screw (3 required) |
| 22 | W525953 | Brake booster vacuum hose clamp |
